Caged Ball LM Guide Finite Stroke Model EPF Model EPF

This model is a standard type.

  • Long-term maintenance free
  • High accuracy
  • Finite stroke
  • Low friction
  • 4-way equal load
  • Miniature
  • Bolts mounted from above

Basic load rating (kN): Basic dynamic load rating 0.90 to 3.71 / Basic static load rating 1.60 to 5.88
Size : 7,9,12,15

Select display items

Click on the feature tag you wish to view and press the button to display. Detailed information is displayed at the bottom of the screen.

  • Select all
  • Deselect all

Detailed information

    THK Online Services
    Member-Exclusive Content

    These contents can be accessed

    after registering as a member.

    Log in/Register Click here for THK Online Services details

    Benefit 1: Useful features

    • Easy product comparisonsHighlight feature
    • Save items for laterreview Favorites feature

    Benefit 2: Exclusive content

    Products Contents
    LM Guide LM rail standard lengths and maximum length, tapped-hole type LM rail, frame for LM rail clamps, steel plate for LM rail clamps, etc.
    Ball Screw Axial clearance, maximum manufacturing length of shaft, etc.
    Actuator Movable part mass, etc.

Optional

Contamination Protection

Block Compatible Option

Seal and Metal Scraper

  • End seal
  • Side seal
  • Inner seal
  • With end seal + side seal + inner seal
  • With double seals + side seal + inner seal
  • With end seal + side seal + inner seal + metal scraper
  • With double seals + side seal + inner seal + metal scraper
  • The LM Block Dimension with Seals Attached
  • Maximum Seal Resistance
  • Laminated Contact Scraper LaCS
  • The LM Block Dimension with LaCS is Attached
  • Incremental Dimension with Grease Nipple when LaCS is Attached
  • Maximum resistance for LaCS
  • Side Scraper
  • Maximum resistance for the side scraper
  • Protector
  • The LM Block Dimension with Protector is Attached
  • Light-Resistance Contact Seal LiCS
  • The LM Block Dimension with LiCS is Attached
  • Incremental Dimension with Grease Nipple When LiCS is Attached
  • Maximum resistance for LiCS
  • High Chemical Resistance Fluorine Seal FS
  • Overall block length with fluorine seals and other accessories attached
  • Maximum seal resistance of FS

Rail Compatible Option

Cover

  • Plate Cover SV
  • Plate Cover
  • Steel Tape SP
  • Dedicated Bellows
  • Dedicated LM Cover

Cap

  • Dedicated Cap for LM Rail Mounting Holes Cap CV/Cap C
  • Dedicated Cap for LM Rail Mounting Holes Cap GC

Lubrication

Block Compatible Option

  • QZ Lubricator
  • The LM Block Dimension with QZ is Attached

Rustprevention

Block and Rail Compatible Option

Surface Treatment

  • Surface Treatment

Material

  • Stainless Steel

Other

  • Lubrication Adapter
  • Removing/mounting Jig
  • End Piece EP

Display result

Detailed information

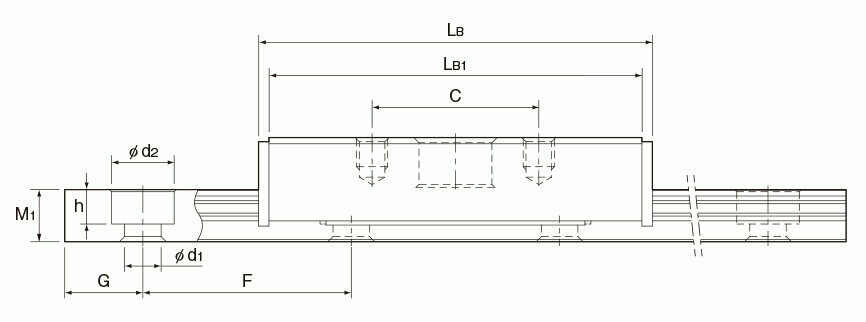

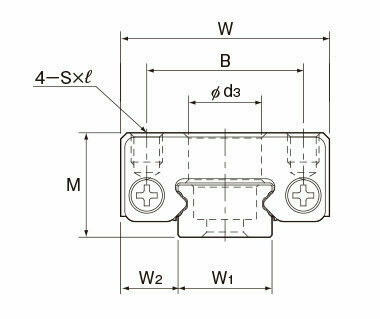

Dimensional drawing/Dimensional table
Optional

Detailed information

Dimensional drawing/Dimensional table

  • Note) The M in the model number symbol indicates that the LM block, LM rail and balls are made of stainless steel. The stainless steel provides excellent corrosion and environmental resistance.
  • Note) Static permissible moment * : Static permissible moment value with 1 LM block
Notes on dimensional table
Recommended Tightening Torques of Mounting Bolts
Unit: N・m
Model No. Nominalbolt Rated tightening torque
Iron Casting Aluminum
EPF 7M M2 0.588 0.392 0.294
EPF 9M M3 1.96 1.27 0.98
EPF 12M
EPF 15M
Table2 Maximum slip resistance
Unit: N
Model No. Maximum slip resistance
EPF 7M 20
EPF 9M 20
EPF 12M 30
EPF 15M 30
  • Note) While the cage used to hold the balls is designed tooperate extremely precisely, factors such as impactsor inertial moment or drive vibration from the machinecan cause cage distortion. If using the EPF LM guide in the following conditions,contact THK. ・ Vertical Orientation ・ Under a large moment load ・ Butting the guide’s external stopper with the table ・ For applications involving high acceleration/deceleration If cage distortion occurs, the cage must be forciblyrestored to its original shape. Table 1 shows the required slip resistance in this event. Set the thrust so that it is no less than the maximum value shown in the table.

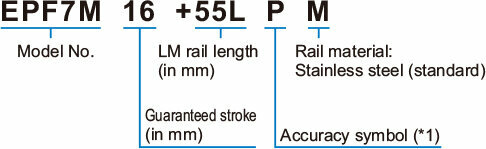

Model number coding

(*1)See Accuracy symbol

  1. Note) This model number indicates that a single-rail unit constitutes one set.
Notes on Ordering

[Order units]

Note that the number of items that constitute one set differs depending on the type of LM guide. Check the sample model number configurations and the accompanying notes.

Sample LM guide orders

SHS25C2SSC1+640L 1set
SHS25C2SSC1+640L-Ⅱ 2set
