Caged Ball LM Guide ISO-Compliant Dimensions Super-Low Waving Model SPH

By adopting eight rows of raceways and small-diameter balls, the number of load-bearing balls within the LM block has been increased. This in turn enables the highest level of waving performance among THK LM Guide products, with super-low waving on a nanometer-level scale.
Dimensions conform to globally standard ISO specifications (ISO 12090-1:2011 Rolling Bearings) even with an eight-row structure.This product comes in four sizes ranging from 25 to 45, and a lineup of six block types is available: C/LC, V/LV, and R/LR.

  • Long-term maintenance free
  • High accuracy
  • Finite stroke
  • 8 grooves
  • Super-low waving
  • Low friction
  • ISO compliant dimensions
  • 4-way equal load

Size : 25,30,35,45

Types

Copy item link
Add item to favorites

Highlight feature tags

  • Long block LM Guide
  • Bolts mounted from above and below
  • Bolts mounted from above
Model SPH-C
  • Bolts mounted from above and below

Basic load rating(kN):Basic dynamic load rating 16.9 to 45.4 / Basic static load rating 35.3 to 89
Size : 25,30,35,45

Model SPH-LC
  • Long block LM Guide
  • Bolts mounted from above and below

Basic load rating(kN):Basic dynamic load rating 19.7 to 54.7 / Basic static load rating 43.9 to 116
Size : 25,30,35,45

Model SPH-V
  • Bolts mounted from above

Basic load rating(kN):Basic dynamic load rating 16.9 to 45.4 / Basic static load rating 35.3 to 89
Size : 25,30,35,45

Model SPH-LV
  • Long block LM Guide
  • Bolts mounted from above

Basic load rating(kN):Basic dynamic load rating 19.7 to 54.7 / Basic static load rating 43.9 to 116
Size : 25,30,35,45

Model SPH-R
  • Bolts mounted from above

Basic load rating(kN):Basic dynamic load rating 16.9 to 45.4 / Basic static load rating 35.3 to 89
Size : 25,30,35,45

Model SPH-LR
  • Long block LM Guide
  • Bolts mounted from above

Basic load rating(kN):Basic dynamic load rating 19.7 to 54.7 / Basic static load rating 43.9 to 116
Size : 25,30,35,45

Features

Copy item link
Add item to favorites

Structure and Features

Copy item link
Add item to favorites

Super-Low Waving

Copy item link
Add item to favorites

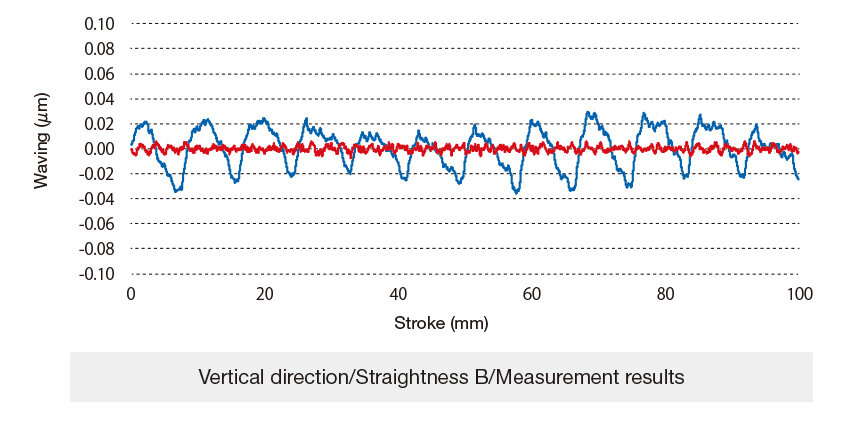

By adopting eight rows of raceways and small-diameter balls, the number of load-bearing balls within the LM block has been increased. This in turn enables the highest level of waving performance among THK LM Guide products, with super-low waving on a nanometer-level scale.

Waving Evaluation

Legend Model No. Max. waving amplitude Avg. waving amplitude
Existing products 0.0634μm 0.0505μm
SPH25 0.0120μm 0.0088μm

ISO-Compliant Dimensions

Copy item link
Add item to favorites

Dimensions conform to globally standard ISO specifications (ISO 12090-1:2011 Rolling Bearings) even with an eight-row structure. This product comes in four sizes ranging from 25 to 45, and a lineup of six block types is available: C/LC, V/LV, and R/LR.

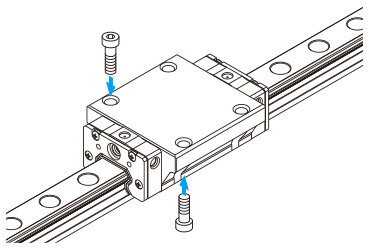

The flange of the LM block has tapped holes. It can be mounted from the top or the bottom. It is used in places where the table cannot have through holes for mounting bolts.

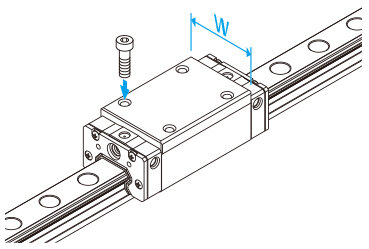

The LM block has a smaller width (W) and tapped holes. It is used in places where the space for table width is limited.

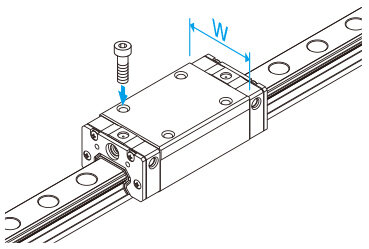

The LM block has a smaller width (W) and tapped holes. It is used in places where the space for table width is limited. It maintains the same height dimension as the Full-Ball LM Guide Model HSR-R.

Advantages of Caged Ball Technology

Copy item link
Add item to favorites

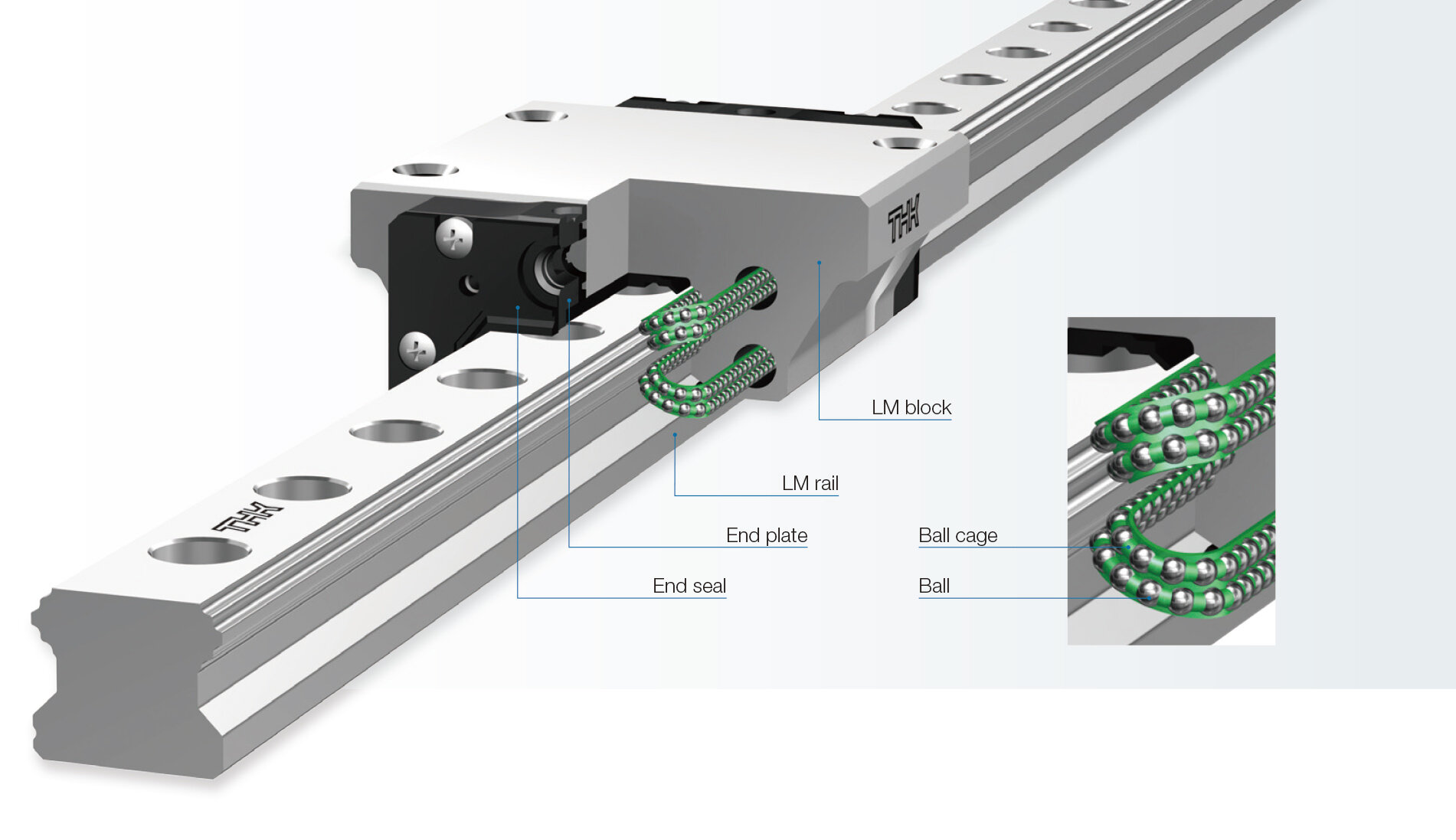

This product adopts ball cages, which are a core piece of THK's technology that has been cultivated over many years. Use of a ball cage that retains balls as they recirculate eliminates friction between balls and increases grease retention to achieve long service life and long-term maintenance-free operation. In addition, retaining balls as they recirculate ensures smooth movement.

4-Way Equal Load

Copy item link
Add item to favorites

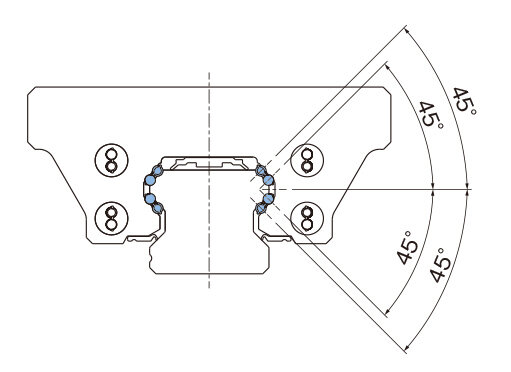

This product is designed to equally bear loads applied to the LM block from four directions (radial, reverse-radial, and horizontal). As a result, this model can be used in any orientation, enabling a wide variety of applications.

The same load can be supported from all four directions.

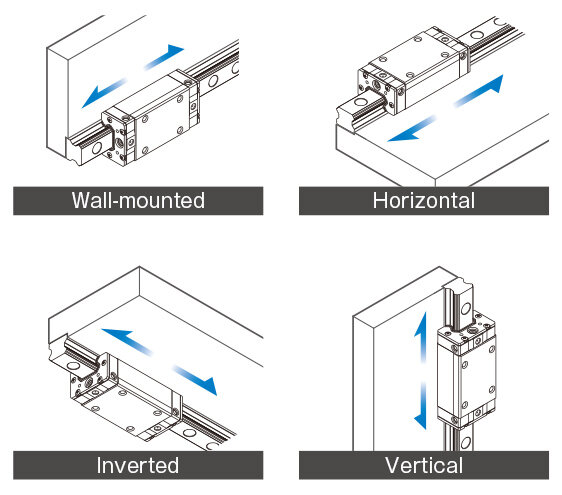

This model is equally suited for use in a horizontal orientation and any other orientation.
