Full-Ball LM Guide High-Acceleration and Low-Resistance Miniature LM Guide Model AHR

High-acceleration performance for increased semiconductor chip production capacity

  • High accuracy
  • 4-way equal load
  • High acceleration
  • Low resistance
  • Miniature

Size : 9,12,15

Types

Copy item link
Add item to favorites

Highlight feature tags

  • Long block LM Guide
  • Bolts mounted from above
  • Short block (LM Guide)
Model AHR-S
  • Bolts mounted from above
  • Short block (LM Guide)

Basic load rating(kN):Basic dynamic load rating 1 to 2.7 / Basic static load rating 1.54 to 3.75
Size : 9,12,15

Model AHR-M
  • Bolts mounted from above

Basic load rating(kN):Basic dynamic load rating 1.62 to 4.17 / Basic static load rating 3.08 to 6.96
Size : 9,12,15

Model AHR-N
  • Long block LM Guide
  • Bolts mounted from above

Basic load rating(kN):Basic dynamic load rating 2.16 to 5.84 / Basic static load rating 4.63 to 11.24
Size : 9,12,15

Features

Copy item link
Add item to favorites

Structure and Features

Copy item link
Add item to favorites

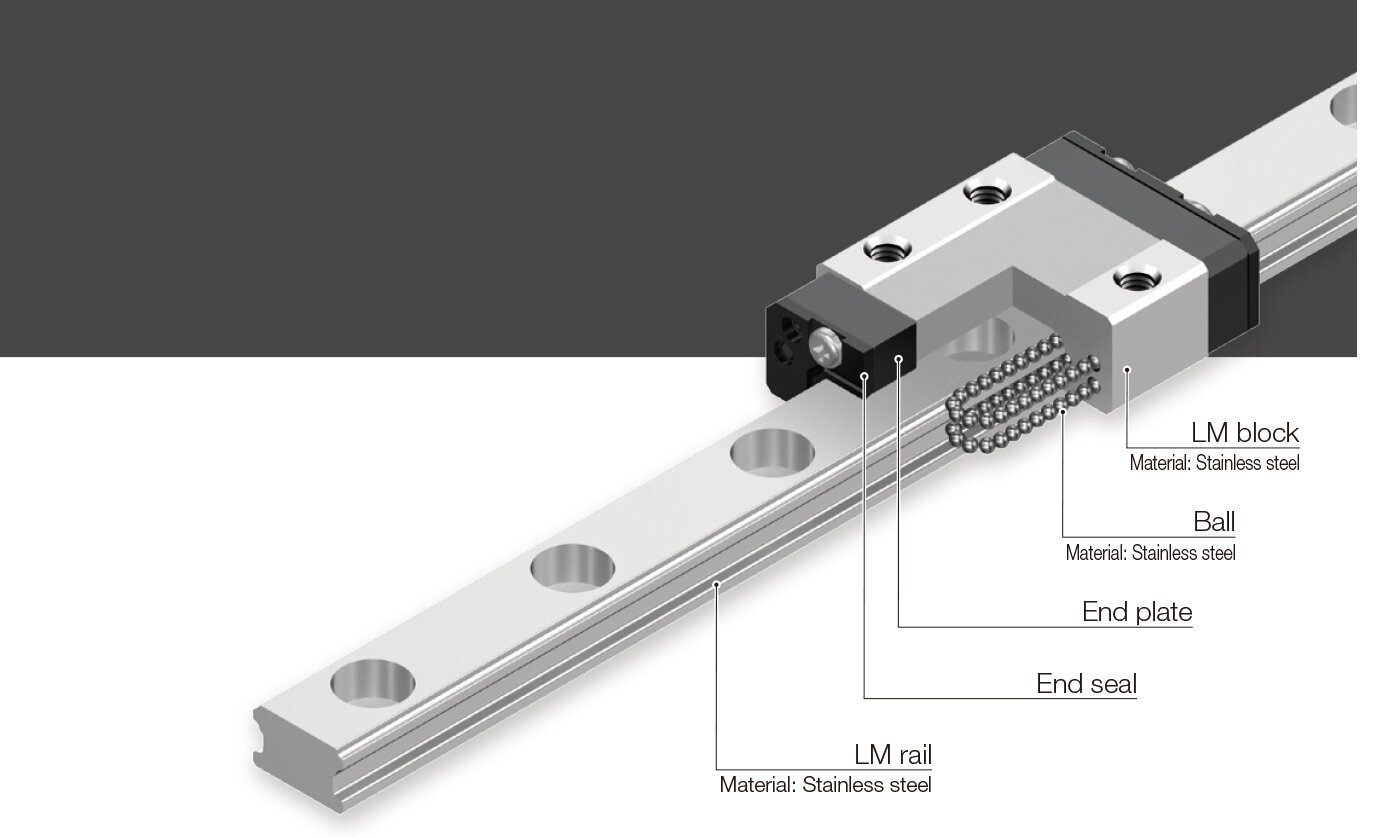

Structure

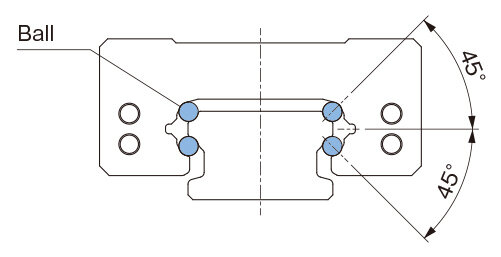

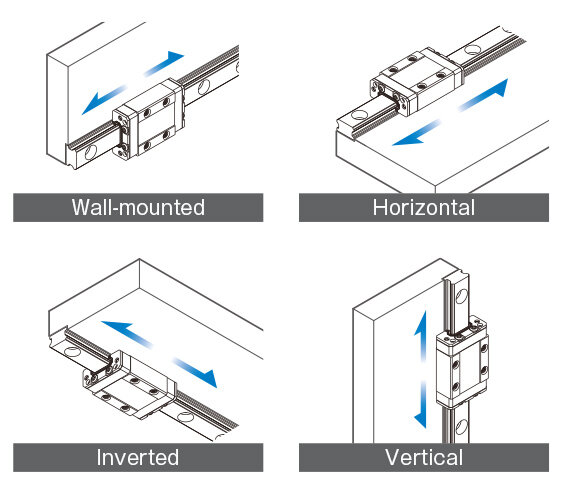

The newly developed circulation component enables high-speed, high-acceleration operation, making it ideal for meeting the demand for increased productivity from semiconductor manufacturing equipment. Additionally, each row of balls is placed at a contact angle of 45° so that loads are uniform in the four directions (radial, reverse-radial, and lateral directions), enabling the miniature LM Guide to be used in all orientations.

High Speed and High Acceleration

Copy item link
Add item to favorites

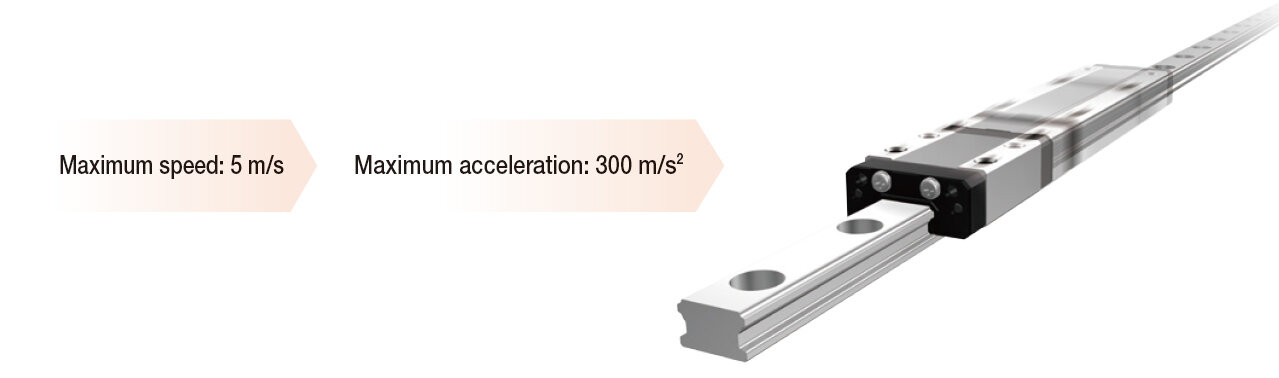

The newly developed circulation component is stronger and more resilient. This contributes to productivity improvements by increasing robustness during high-speed, high-acceleration operations.

Low Sliding Resistance

Copy item link
Add item to favorites

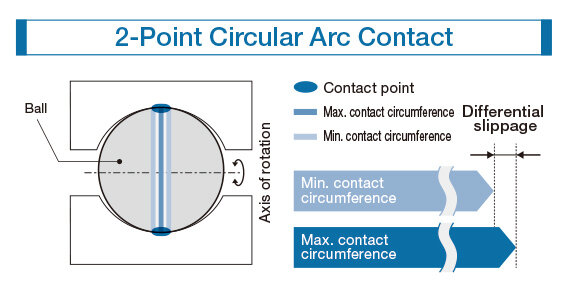

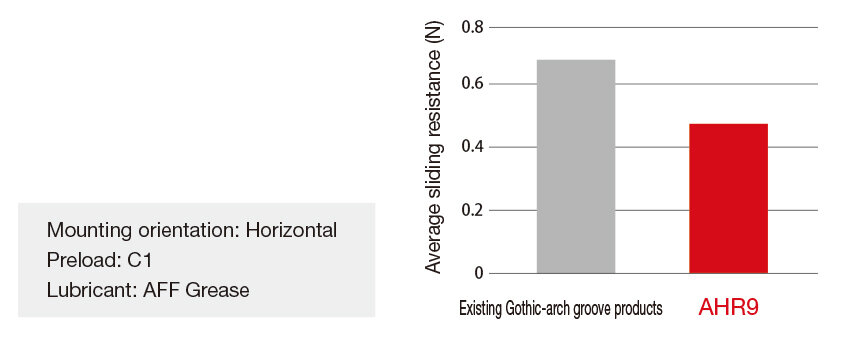

Low resistance is made possible by THK's core technology, the ideal four circular arc grooves and two-point contact structure. This contributes to greater servo control.

Interchangeable Mounting Dimensions

Copy item link
Add item to favorites

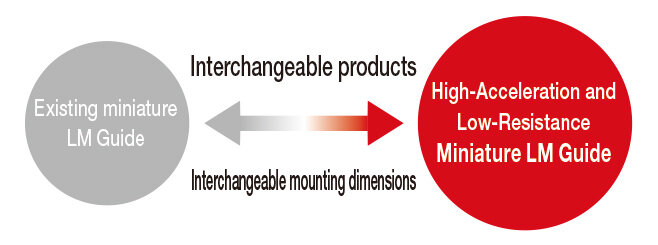

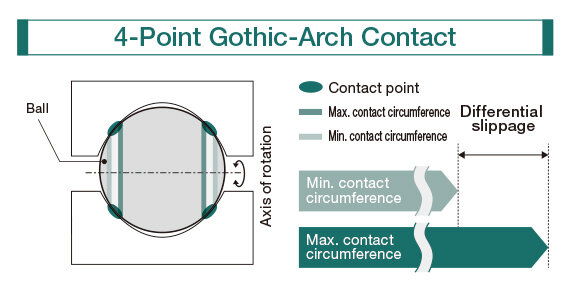

This product can replace existing Miniature LM Guide units that utilize Gothic-arch grooves, as their mounting dimensions are interchangeable.
