Full-Ball LM Guide Cross LM Guide Model CSR

This model is an integral type of LM Guide that squares an internal structure similar to model HSR, which has a proven track record and is highly reliable, with another and uses two LM rails in combination.

  • High accuracy
  • 4-way equal load
  • Cross

Size : 15,20,25,30,35,45

Types

Copy item link
Add item to favorites

Highlight feature tags

  • Long block LM Guide
Model CSR-S

Basic load rating (kN): Basic dynamic load rating 19.8 to 40.5 / Basic static load rating 27.4 to 53.7
Size : 20,25,30

Model CSR
  • Long block LM Guide

Basic load rating (kN): Basic dynamic load rating 10.9 to 100 / Basic static load rating 15.7 to 135
Size : 15,20,25,30,35,45

Features

Copy item link
Add item to favorites

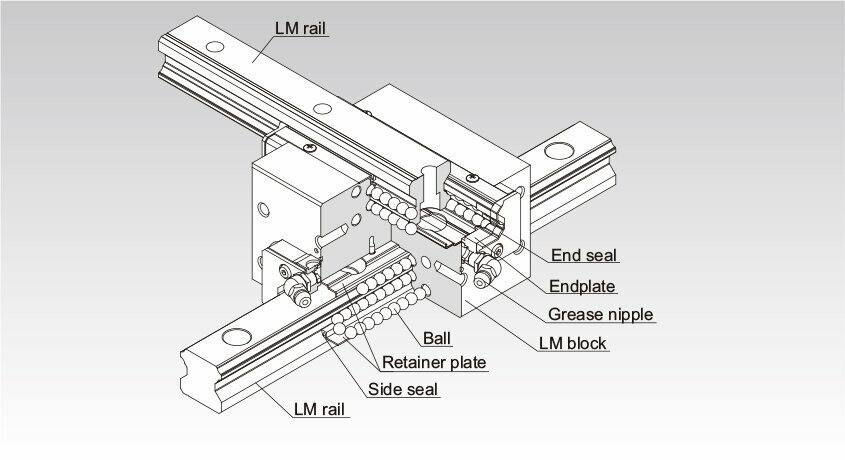

Structure and Features

Copy item link
Add item to favorites

Balls roll in four rows of raceways precision-ground on an LM rail and an LM block, and end plates incorporated in the LM block allow the balls to circulate. Since retainer plates hold the balls, they will not fall out even if the LM block is removed from the LM rail. This LM Guide has two rails intersecting at right angles integrated back-to-back into a single block with the same internal structure as the proven LM Guide Model HSR. It is machined with high precision so that the error in the perpendicularity of the six faces of the LM block is within 2 μm per 100 mm. The two rails are also machined with high precision in relative straightness. This results in extremely high orthogonal accuracy. Because an orthogonal LM System can be achieved with the Model CSR alone, conventional saddles are no longer necessary, enabling simplifi ed X-Y motion and a compact structure.

4-way Equal Load

Each row of balls is placed at a contact angle of 45° so that the rated loads applied to the LM block are uniform in the four directions (radial, reverse radial and lateral directions), enabling the LM Guide to be used in all orientations.

High Rigidity

Since balls are arranged in four rows in a well-balanced manner, this model is stiffagainst a moment, and smooth straight motion is ensured even a preload is applied to increase the rigidity. The rigidity of the LM blocks is 50% higher than that of a combination of two HSR LM blocks secured together back-to-back with bolts. Thus, CSR is an optimal LM Guide for building an X-Y table that requires high rigidity.

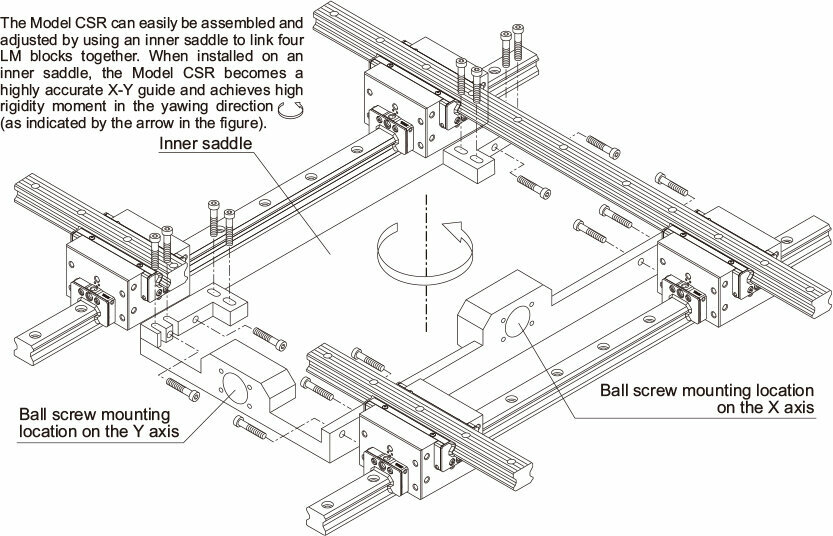

Drawing of Using an Inner Saddle
