LM Guide GK Series Radial Type Model SR

Since it is a compactly designed model that has a low sectional height and a ball contact structure capable of receiving a large load in the radial direction, this LM Guide is optimal for horizontal guide units.
Flexible combinations, simple, quick LM blocks and LM rails available for individual sale.

  • High accuracy
  • Self-adjusting capability
  • Radial
  • compatible_combination_products

Size : 15,20,25,30,35,45,55

Types

Copy item link
Add item to favorites

Highlight feature tags

  • Flange
  • Bolts mounted from above
  • Bolts mounted from below
  • Short block (LM Guide)

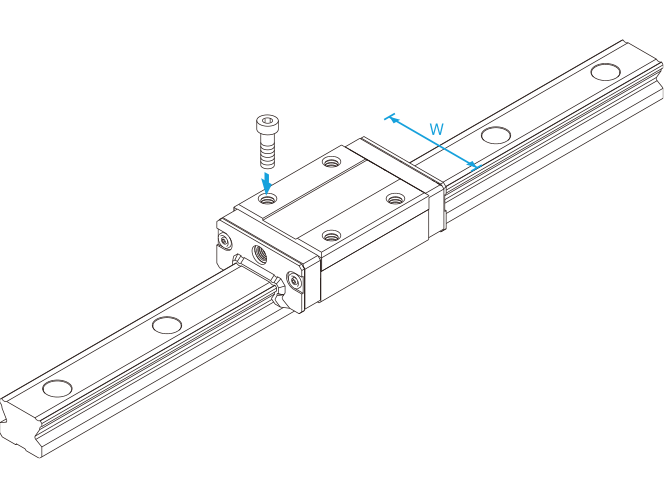

Models SR-W / WM
  • Bolts mounted from above

Basic load rating (kN): Basic dynamic load rating 13.8 to 136 / Basic static load rating 20.5 to 179
Size : 15,20,25,30,35,45,55

Models SR-V / VM
  • Bolts mounted from above
  • Short block (LM Guide)

Basic load rating (kN): Basic dynamic load rating 9.1 to 40.9 / Basic static load rating 11.7 to 46.7
Size : 15,20,25,30,35

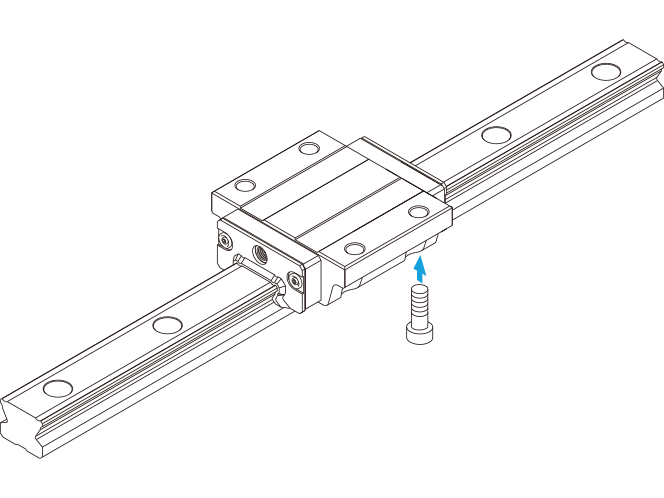

Models SR-TB / TBM
  • Flange
  • Bolts mounted from below

Basic load rating (kN): Basic dynamic load rating 13.8 to 136 / Basic static load rating 20.5 to 179
Size : 15,20,25,30,35,45,55

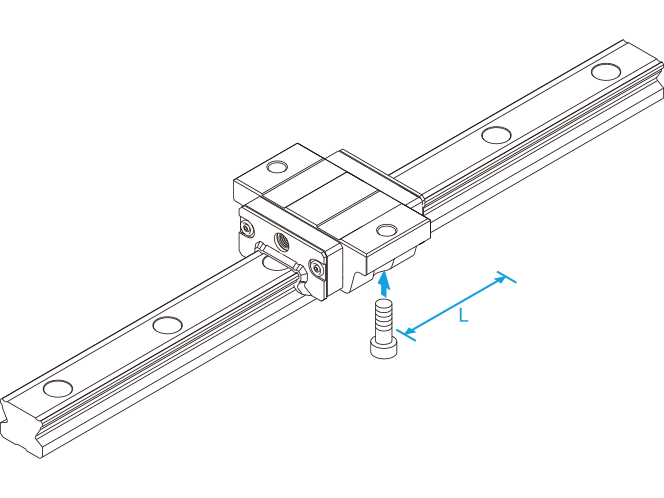

Models SR-SB / SBM
  • Flange
  • Bolts mounted from below
  • Short block (LM Guide)

Basic load rating (kN): Basic dynamic load rating 9.1 to 40.9 / Basic static load rating 11.7 to 46.7
Size : 15,20,25,30,35
