LM Guide GK Series Ultra-High Rigidity / Long-Term Maintenance-Free Operation Model SRG

An ultra-heavy load roller guide with a rigidity twice that of our Full-Ball LM Guide. It has global standard dimensions and achieves long-term maintenance-free operation.
Flexible combinations, simple, quick LM blocks and LM rails available for individual sale.

  • Long-term maintenance free
  • High rigidity
  • Super-rigid
  • Ultra-rigid
  • High accuracy
  • Heavy load
  • Low friction
  • 4-way equal load
  • Ultra-heavy load
  • compatible_combination_products

Size : 15,20,25,30,35,45,55,65

Types

Copy item link
Add item to favorites

Highlight feature tags

  • Flange
  • Long block LM Guide
  • Ultra long block
  • Bolts mounted from above and below
  • Bolts mounted from above
Models SRG-15XA/SRG-20XA/SRG-20XLA
  • Flange
  • Long block LM Guide
  • Bolts mounted from above

Basic load rating (kN): Basic dynamic load rating 11.3 to 26.7 / Basic static load rating 25.8 to 63.8
Size : 15,20

Models SRG-XC/SRG-C
  • Flange
  • Bolts mounted from above and below

Basic load rating (kN): Basic dynamic load rating 27.9 to 219 / Basic static load rating 57.5 to 441
Size : 25,30,35,45,55,65

Models SRG-XLC/SRG-LC
  • Flange
  • Long block LM Guide
  • Bolts mounted from above and below

Basic load rating (kN): Basic dynamic load rating 34.2 to 278 / Basic static load rating 75 to 599
Size : 25,30,35,45,55,65

Model SRG-SLC
  • Flange
  • Ultra long block
  • Bolts mounted from above and below

Basic load rating (kN): Basic dynamic load rating 87.9 to 352 / Basic static load rating 199 to 811
Size : 35,45,55,65

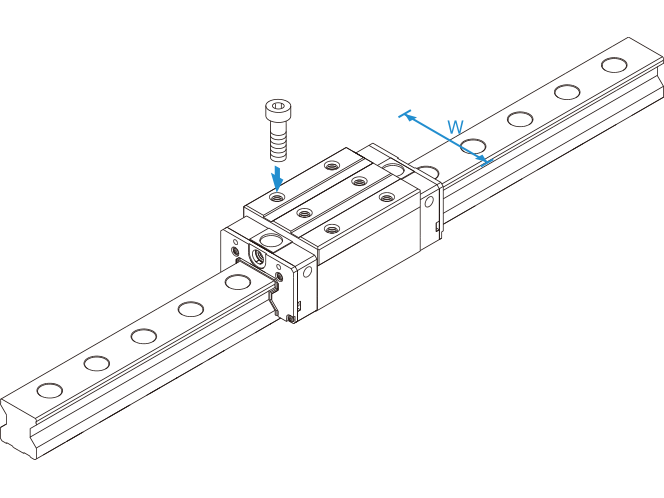

Models SRG-XV/SRG-V/SRG-XR/SRG-R
  • Bolts mounted from above

Basic load rating (kN): Basic dynamic load rating 11.3 to 219 / Basic static load rating 25.8 to 441
Size : 15,20,25,30,35,45,55,65

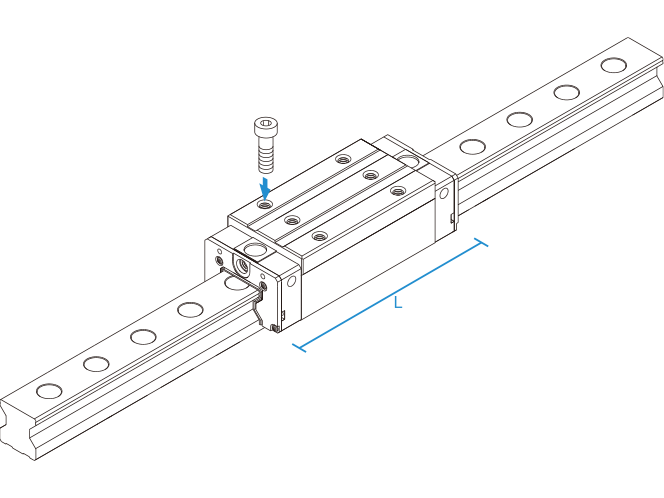

Models SRG-XLV/SRG-LV/SRG-XLR/SRG-LR
  • Long block LM Guide
  • Bolts mounted from above

Basic load rating (kN): Basic dynamic load rating 26.7 to 278 / Basic static load rating 63.8 to 599
Size : 20,25,30,35,45,55,65

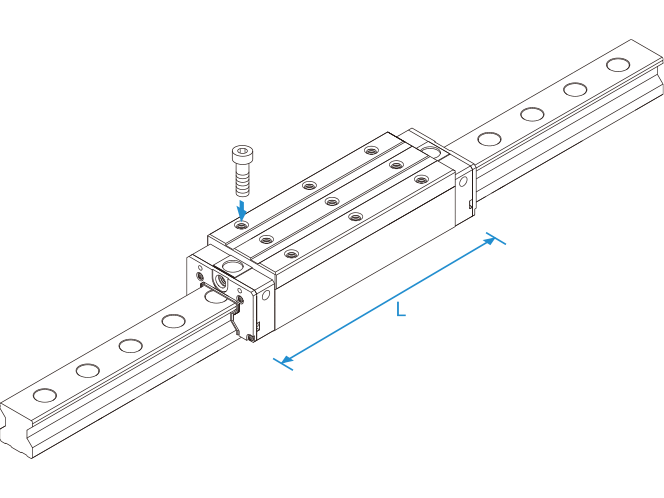

Models SRG-SLV/SRG-SLR
  • Ultra long block
  • Bolts mounted from above

Basic load rating (kN): Basic dynamic load rating 87.9 to 352 / Basic static load rating 199 to 811
Size : 35,45,55,65
