LM Guide GK Series Radial Type / Long-Term Maintenance-Free Operation Model SSR

The compact design with a low sectional height and the ball contact structure at 90° in the radial direction make this model an optimal model for horizontal guide units.
Flexible combinations, simple, quick LM blocks and LM rails available for individual sale.

  • Long-term maintenance free
  • High accuracy
  • Self-adjusting capability
  • Radial
  • compatible_combination_products

Size : 15,20,25,30,35

Types

Copy item link
Add item to favorites

Highlight feature tags

  • Flange
  • Bolts mounted from above
  • Bolts mounted from below
  • Short block (LM Guide)
Models SSR-XW / SSR-XWM
  • Bolts mounted from above

Basic load rating (kN): Basic dynamic load rating 14.7 to 64.6 / Basic static load rating 16.5 to 71.6
Size : 15,20,25,30,35

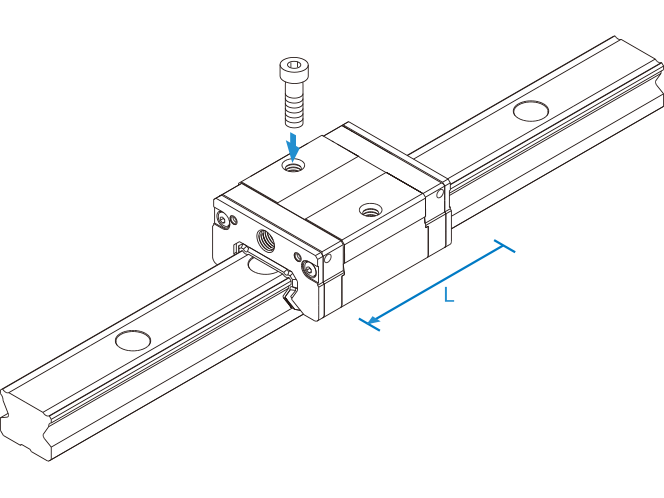

Models SSR-XV / SSR-XVM
  • Bolts mounted from above
  • Short block (LM Guide)

Basic load rating (kN): Basic dynamic load rating 9.1 to 48.3 / Basic static load rating 9.7 to 46.7
Size : 15,20,25,30,35

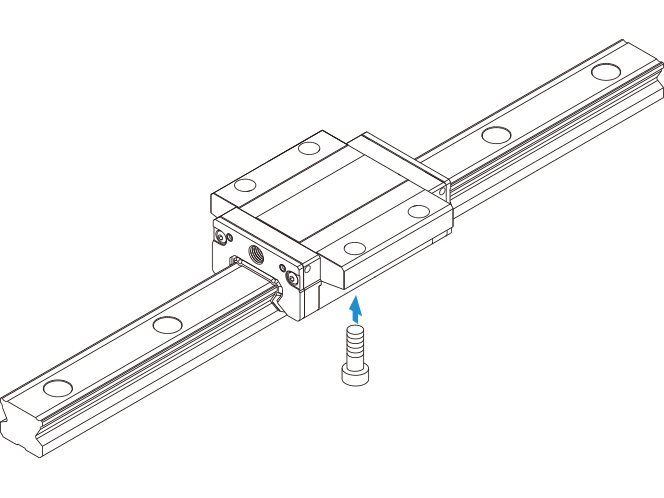

Model SSR-XTB
  • Flange
  • Bolts mounted from below

Basic load rating (kN): Basic dynamic load rating 14.7 to 64.6 / Basic static load rating 16.5 to 71.6
Size : 15,20,25,30,35

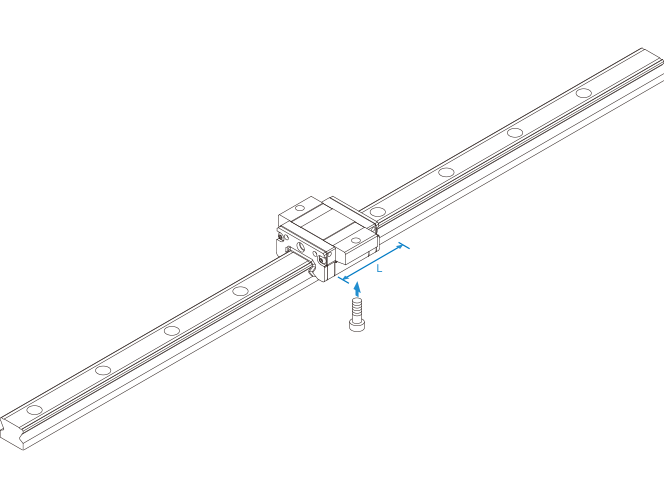

Model SSR-XSB
  • Flange
  • Bolts mounted from below
  • Short block (LM Guide)

Basic load rating (kN): Basic dynamic load rating 9.1 to 48.3 / Basic static load rating 9.7 to 46.7
Size : 15,20,25,30,35

Features

Copy item link
Add item to favorites

Lineup

Copy item link
Add item to favorites

Model
No.

Block type

Short type

Standard type

V

SB

W

TB

15X

20X

25X

30X

35X

Detailed information for each model number
