Full-Ball Type Precision Ball Screw Slim nut Model DIK
A deflector-type Ball Screw in which the right and left screws are provided with a phase in the middle of the ball screw nut, and an axial clearance is set at a below-zero value (under a preload).
Screw shaft diameter (mm) : 14,16,20,25,28,32,36,40,50,63
Types
Highlight feature tags
- Compact
- Preload
- Offset preload
- Deflector type
- Slim nut
- Precision positioning (ball screw)
- Compact
- Preload
- Offset preload
- Deflector type
- Slim nut
- Precision positioning (ball screw)
DN value : 70000
Screw shaft diameter (mm) :
14,16,20,25
- Compact
- Preload
- Offset preload
- Deflector type
- Slim nut
- Precision positioning (ball screw)
DN value : 70000
Screw shaft diameter (mm) :
28,32,36,40,50,63
Detailed information for each model number
Toggle chart

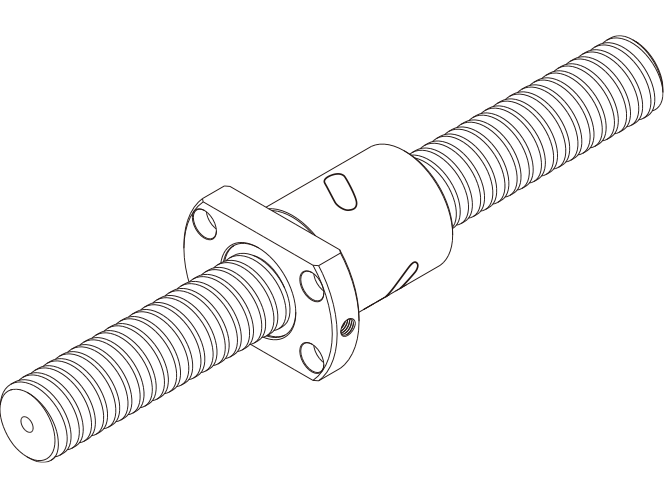

- Model DIK 14 / 16 / 20 / 25
- Model DIK 28 / 32 / 36 / 40 / 50 / 63
