Full-Ball Type Precision Ball Screw Slim nut Model DIK Model DIK 28 / 32 / 36 / 40 / 50 / 63
The right and the left screws are provided with a phase in the middle of the ball screw nut, and an axial clearance is set at a below-zero value (under a preload). This compact model is capable of a smooth motion.
DN value : 70000
Screw shaft diameter (mm) :
28,32,36,40,50,63
Select display items
Click on the feature tag you wish to view and press the button to display. Detailed information is displayed at the bottom of the screen.
- Select all
- Deselect all
Detailed information

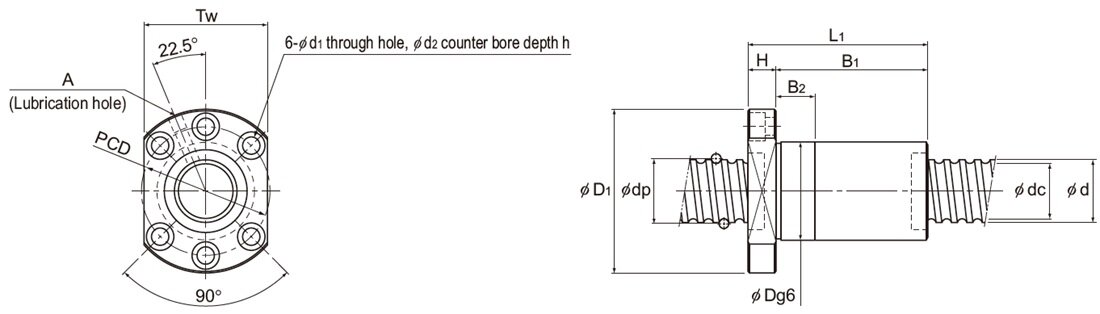

- Dimensional drawing/Dimensional table
- Model Number Coding
- Maximum Manufacturing Length of the Screw Shaft
Optional
Contamination Protection
- Contamination Protection Seal for Ball Screws Labyrinth seal
- Contamination Protection Seal for Ball Screws Brush seal
- Wiper Ring
- Canvas seal
- Thin Film Seal
- Dust Cover for Ball Screws
Lubrication
- QZ Lubricator
Rustprevention
- Surface Treatment
Other
- Dimensions of Each Model with an Option Attached
- Additional Machining for Shaft Ends
Display result
- Detailed information
- Optional
Optional
No option tag has been selected.
Check detailed information with the tool
Click on the icon for the item you want to see in detail. Member registration and login are required for use.
Designer is the former optimal product selection tool
You can download 2D/3D CAD by clicking on the icon and selecting from the CAD format.
| Model No. | Designer* | Life Calculator* | CAD Download* |
Catalog Download |
Manual Download |
|---|---|---|---|---|---|
| DIK 2805-6 |
 |
 |
 |
 |
 |
| DIK 2805-8 |
|
|
|||
| DIK 2806-6 |
|
|
|||
| DIK 2810-4 |
|
|
|||
| DIK 3204-6 |
|
|
|||
| DIK 3204-8 |
|
|
|||
| DIK 3204-10 |
|
|
|||
| DIK 3205-6 |
|
|
|||
| DIK 3205-8 |
|
|
|||
| DIK 3206-6 |
|
|
|||
| DIK 3206-8 |
|
|
|||
| DIK 3210-6 |
|
|
|||
| DIK 3212-4 |
|
|
|||
| DIK 3610-6 |
|
|
|||
| DIK 3610-8 |
|
|
|||
| DIK 3610-10 |
|
|
|||
| DIK 4010-6 |
|
|
|||
| DIK 4010-8 |
|
|
|||
| DIK 4012-6 |
|
|
|||
| DIK 4012-8 |
|
|
|||
| DIK 4016-4 |
|
|
|||
| DIK 5010-6 |
|
|
|||
| DIK 5010-8 |
|
|
|||
| DIK 5010-10 |
|
|
|||
| DIK 5012-6 |
|
|
|||
| DIK 5012-8 |
|
|
|||
| DIK 5016-4 |
|
|
|||
| DIK 5016-6 |
|
|
|||
| DIK 6310-8 |
|
|
|||
| DIK 6312-6 |
|
|
|||
| DIK 6312-8 |
|
|
