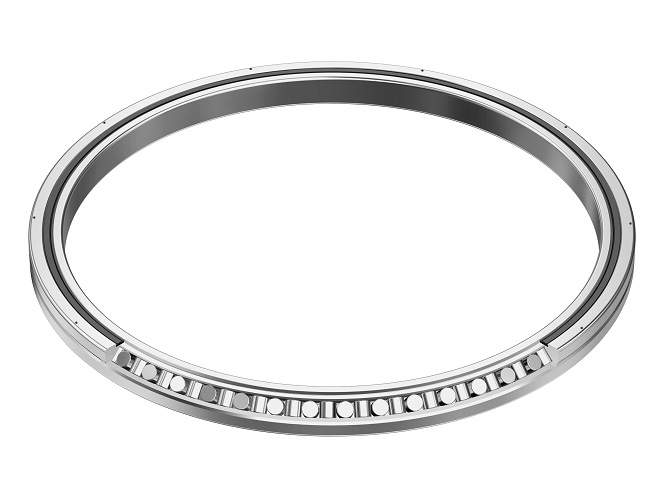

Cross-Roller Ring Thin Type Model RA
This model is a compact type of model RB with extremely thin outer and inner rings. It is optimal for areas where the swiveling unit needs to be light and small.
Types
Highlight feature tags
- High rigidity
- Single split
- Large load capacity
- Rotation accuracy

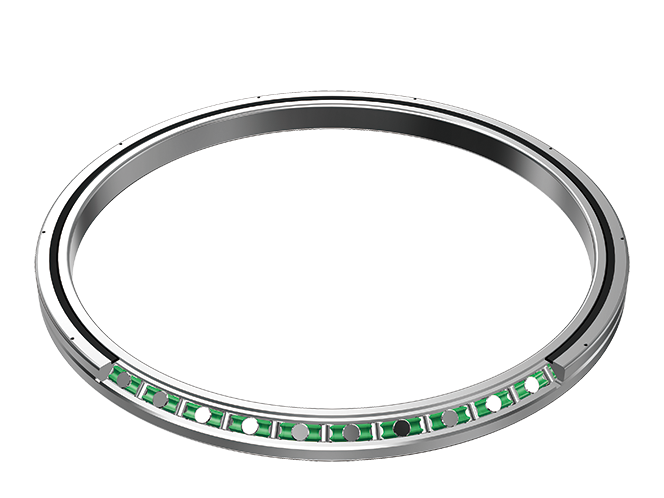

Model RA (Separable Outer Ring Type for Inner Ring Rotation)
- High rigidity
- Single split
- Large load capacity
- Rotation accuracy
Basic load rating (radial) (kN): Basic dynamic load rating 5.10 to 25.8 / Basic static load rating 7.19 to 54.7
Detailed information for each model number
Dimensional drawing/Dimensional table
