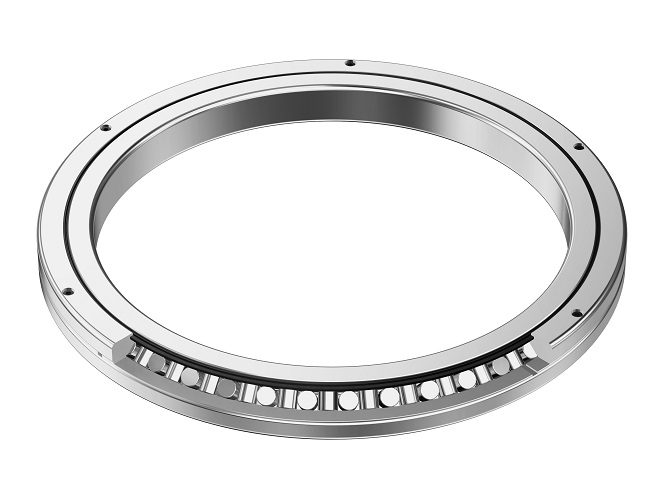

Cross-Roller Ring Standard Model RB

The basic type of Cross-Roller Ring, in which the outer ring is separable while the inner ring is integrated with main body.

  • High rigidity
  • Separable outer ring type
  • Outer ring rotation
  • Large load capacity
  • Rotation accuracy

Types

Highlight feature tags

  • High rigidity
  • Separable outer ring type
  • Outer ring rotation
  • Large load capacity
  • Rotation accuracy
Model RB
  • High rigidity
  • Separable outer ring type
  • Outer ring rotation
  • Large load capacity
  • Rotation accuracy

Basic load rating (radial) (kN): Basic dynamic load rating 3.23 to 1350 / Basic static load rating 3.1 to 3970

Model RB-H
  • High rigidity
  • Separable outer ring type
  • Outer ring rotation
  • Large load capacity
  • Rotation accuracy

Basic load rating (radial) (kN): Basic dynamic load rating 18 to 320 / Basic static load rating 21.9 to 948

Detailed information for each model number

Dimensional drawing/Dimensional table
