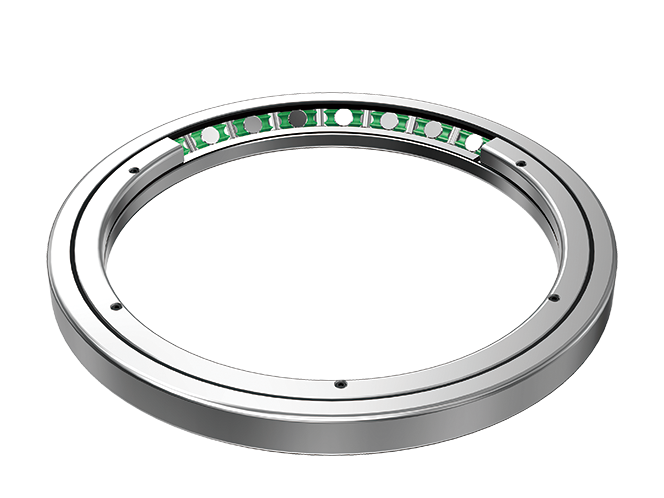

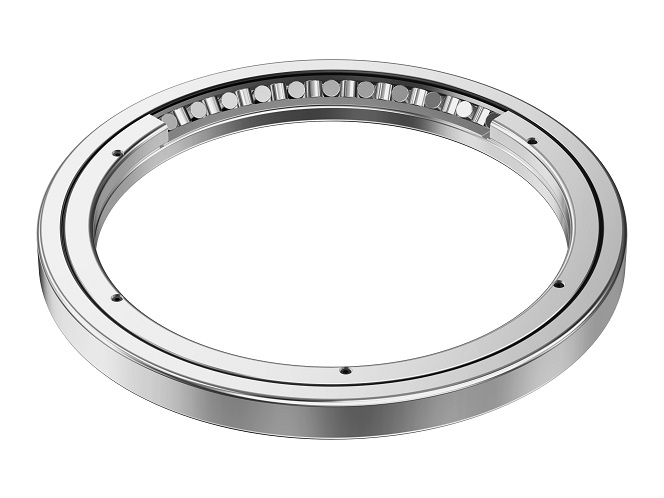

Cross-Roller Ring Standard Model RE
This model has the same main dimensions as model RB, but is used in areas where the outer ring is required have high rotation accuracy.

Types
Highlight feature tags
- High rigidity
- Two-piece inner ring type
- Inner ring rotation
- Large load capacity
- Rotation accuracy

- High rigidity
- Two-piece inner ring type
- Inner ring rotation
- Large load capacity
- Rotation accuracy
Basic load rating (radial) (kN): Basic dynamic load rating 3.23 to 264 / Basic static load rating 3.1 to 721

- High rigidity
- Two-piece inner ring type
- Inner ring rotation
- Large load capacity
- Rotation accuracy
Basic load rating (radial) (kN): Basic dynamic load rating 18.8 to 299 / Basic static load rating 23.5 to 817
Detailed information for each model number
Dimensional drawing/Dimensional table
