Cross-Roller Ring Standard Model RU Model RU
The integrated design of the unit’s inner and outer rings, with mounting holes on both rings, eliminates the need for a special flange or housing and enables easy installation.
Mounting has virtually no effect on performance, which ensures stable, accurate rotation and torque.Can be used for both outer and inner ring rotation.
Basic load rating (radial) (kN): Basic dynamic load rating 7.35 to 222 / Basic static load rating 8.35 to 473
Select display items
Click on the feature tag you wish to view and press the button to display. Detailed information is displayed at the bottom of the screen.
- Select all
- Deselect all
Detailed information
-
Easy product comparisonsHighlight feature -
Save items for laterreview Favorites feature
THK Online Services
Member-Exclusive Content
These contents can be accessed
after registering as a member.
Benefit 1: Useful features
Benefit 2: Exclusive content
| Products | Contents |
|---|---|
| LM Guide | LM rail standard lengths and maximum length, tapped-hole type LM rail, frame for LM rail clamps, steel plate for LM rail clamps, etc. |
| Ball Screw | Axial clearance, maximum manufacturing length of shaft, etc. |
| Actuator | Movable part mass, etc. |
Display result
- Detailed information

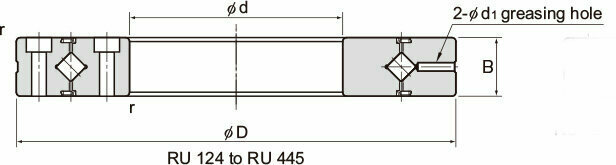

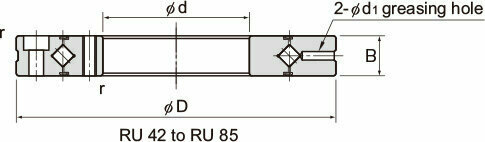

- Dimensional drawing/Dimensional table
Detailed information

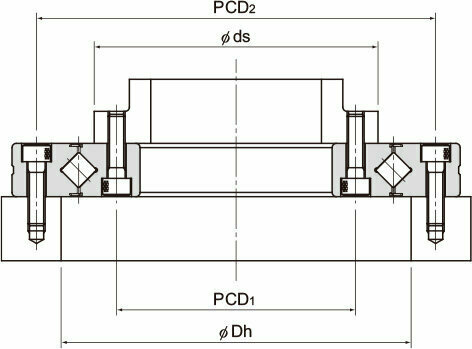

Dimensional drawing/Dimensional table
Notes on dimensional table
- Note) Optional grease nipple available for model RU. (See figure below.) To indicate that you want grease nipples, add "-N" to the end of the model number.

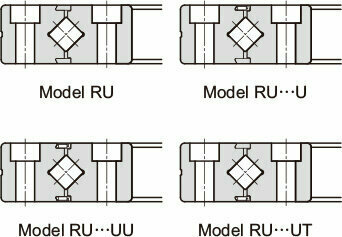

Model number coding
(*1) See Radial Clearance Standard (*2) See Accuracy Standard
