Other Linear Motion Guides

Linear motion guides such as linear bushings, slide packs and cross-roller guides are available for use in a variety of situations to suit various applications. Our products are ideal for the semiconductor and electronic component industries as well as the food and medical industries.

Types

Spline nuts are low-cost spline bearings with a sliding guide.
The combination of a special alloy spline bearing and spline shaft allows the linear guide to transmit torque.

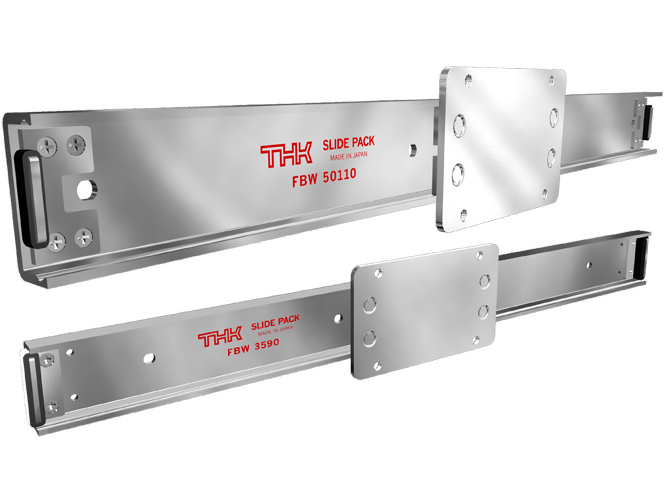

The slide pack is a low-cost linear guide consisting of press-molded sliders and roll-formed rails.
It is lightweight, compact, and provides smooth linear motion.

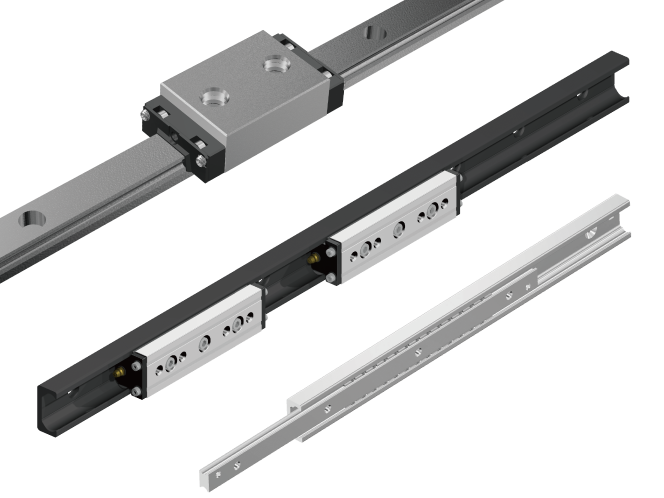

Slide rails are low-price finite linear guides made out of precision roll-formed steel plate.
Suitable for various purposes because they are thin, compact, and easy to mount.

This slide rail is compact and easy to assemble, and it has a high permissible load.
Ideal for linear guide units in housing and office equipment.

Precision linear packs are ultra-thin, lightweight linear guides.
Suitable for precision measuring equipment, semiconductor manufacturing and inspection equipment, and other locations where precise linear motion is required.

The cross-roller guide is a finite stroke type linear guide consisting of precision rollers assembled alternately in an orthogonal arrangement.
The highly rigid and smooth linear motion is especially suited for linear guides, which require high precision and rigidity.

The cross-roller table is a compact, highly rigid finite linear guide unit that incorporates the cross-roller guide.
The result is a highly accurate linear guide mechanism that is achieved simply by mounting the product with bolts.

The guide ball bushing is a linear guide that is used in combination with a cylindrical LM shaft.
This allows linear motion with minimal friction resistance and therefore highly accurate and smooth motion.

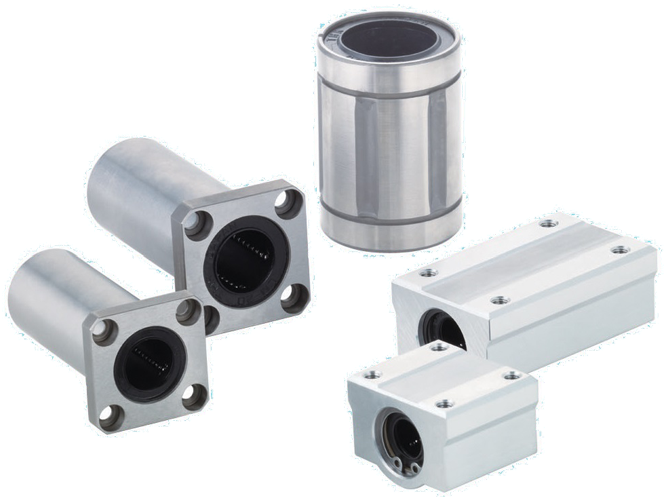

The linear bushing is a linear guide that is used in combination with a cylindrical LM shaft.
This allows linear motion with minimal friction resistance and therefore highly accurate and smooth motion.

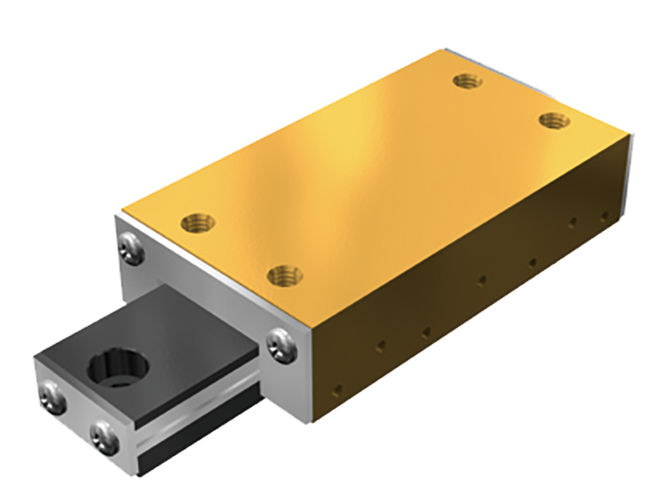

The linear ball slide is a lightweight and compact, finite-type linear guide unit that operates with extremely low sliding resistance.
Since the coefficient of friction is extremely low and the inertia is small, the slide system is highly responsive to high speeds.

The LM roller is a compact, high load-bearing linear guide with a contoured roller that moves in infinite circulation.
Ideal for machines requiring high positioning accuracy, repeatability, and rigidity.

The flat roller is a roller-type linear guide that can be installed onto the 90°V-flat sliding surfaces often used in machine tools.
When replacing the sliding surface of a conventional V-flat with a rolling surface, no major design changes are required, since only a roller is needed between the two surfaces.

The LM stroke is a finite-stroke type linear guide with a rolling mechanism for rotational motion and reciprocating motion.
With an extremely small coefficient of friction, a compact, high-precision guide mechanism is achieved at low cost.
