Setting Conditions
Table of Equivalent Factors
Table4 Equivalent Factors of Model LG-S
| Model No. | Equivalent factor: K | |
|---|---|---|
| Single nut | Double blocks | |
| LG 4S | 1.062 | 0.193 |
| LG 6S | 0.885 | 0.121 |
| LG 8S | 0.708 | 0.096 |
Table5 Equivalent Factors of Model LG-L
| Model No. | Equivalent factor: K |
|---|---|
| Single nut | |
| LG 4L | 0.733 |
| LG 6L | 0.465 |
| LG 8L | 0.442 |
Precautions To Be Taken if an Eccentric Load Is Applied
Model LG achieves a much higher load-carrying capacity in receiving the eccentric load (moment and torque) than Linear Bushing model LM because of 4 rows of raceways. However, under conditions where the eccentric load is larger, the product may result in poor operation or early failure.In such cases, we recommend using Ball Spline model LBS or LT, both of which have larger loadcarrying capacities ( see onward for model LBS , or onward for model LT ).
Accuracy Standards
Guide Ball Bushing

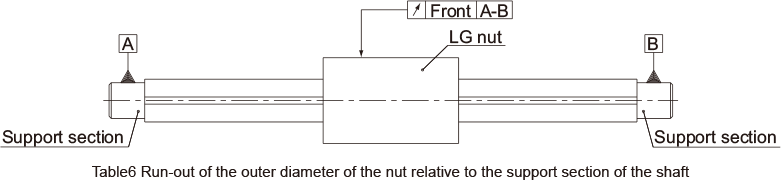

Table6 Run-out of the outer diameter of the nut relative to the support section of the shaft
Unit: μm
| Overall shaft length (mm) | Run-out(max) * | |
|---|---|---|
| - | 200 or less | 72 |
| Above 200 | 250 or less | 133 |
*: The value if the radial clearance is zero
