Linear Bushing Press Fit Type Linear Bushing LMHB
The LMHB is a linear bushing that is press-fit into a housing.Using an LMHB makes it possible to automate installation and boost productivity by reducing installation time.

Types
Highlight feature tags
- Compact
- Press fit type

- Compact
- Press fit type
Basic load rating N : Basic dynamic load rating 432 to 1462 / Basic static load rating 211 to 786
Features
Structure

Easy to Install
Unlike with a metal linear bushing, the nut of the LMHB is press-fit into a housing.
Using an LMHB makes it possible to automate installation and boost productivity by reducing installation time.

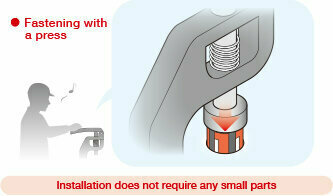

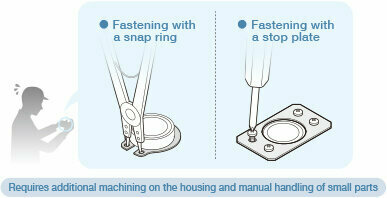

Common methods for fastening a metal linear bushing | Using press fitting to fasten an LMHB | ||
---|---|---|---|
Installation process |
![]() |
![]() |
Silent and Clearance-Free
The LMHB achieves smooth, silent motion thanks to the spring effect provided by the proprietary curved metal plates designed by THK, which minimize clearance between the balls and LM shaft.

Thin, Compact, ISO-Standard Design
The LMHB conforms to ISO 10285 Series 1, and it allows for more compact machine designs.
Detailed information for each model number
Dimensional drawing/Dimensional table
