Utility Slide Advanced Wheel Guide AWG-RC Type
This utility slide is made of an outer member and a carriage with mounted wheels.
The AWG-RC type comes with five wheels.
Select display items
Click on the feature tag you wish to view and press the button to display. Detailed information is displayed at the bottom of the screen.
- Select all
- Deselect all
Detailed information
-
Easy product comparisonsHighlight feature -
Save items for laterreview Favorites feature
THK Online Services
Member-Exclusive Content
These contents can be accessed
after registering as a member.
Benefit 1: Useful features
Benefit 2: Exclusive content
| Products | Contents |
|---|---|
| LM Guide | LM rail standard lengths and maximum length, tapped-hole type LM rail, frame for LM rail clamps, steel plate for LM rail clamps, etc. |
| Ball Screw | Axial clearance, maximum manufacturing length of shaft, etc. |
| Actuator | Movable part mass, etc. |
Display result
- Detailed information
- Dimensional drawing/Dimensional table
Detailed information

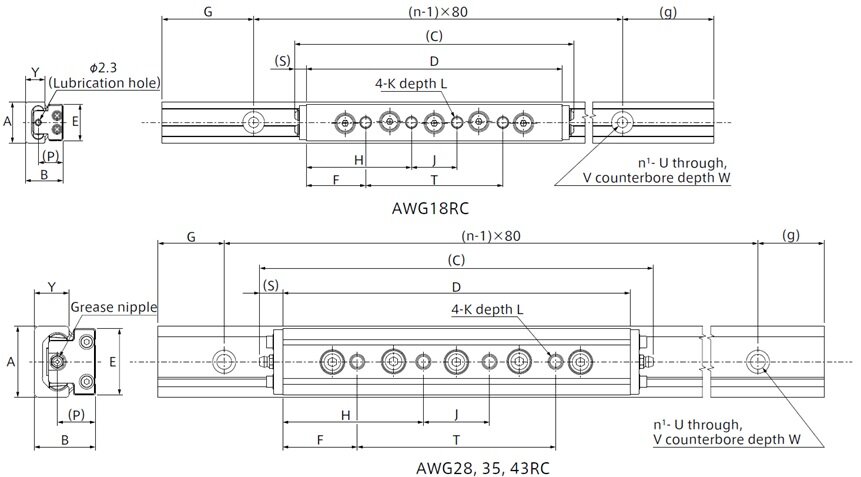

Dimensional drawing/Dimensional table
- *
n: Number of outer member mounting holes
Specify this number based on the length of the outer member.
Notes on dimensional table
- *
It is typical for this product to be wall-mounted with two units facing each other. However, the basic static load rating and mass given are the values for one carriage and one outer member.

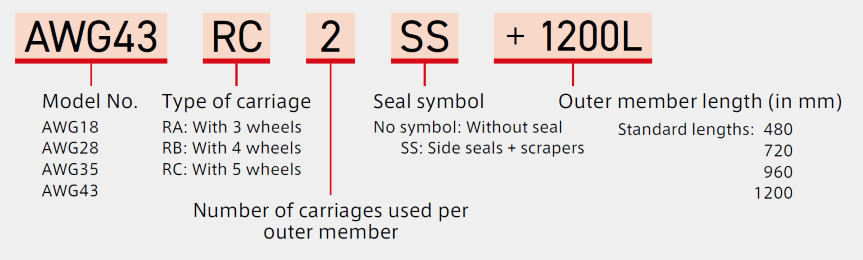

Model number coding
