Utility Slide UGR

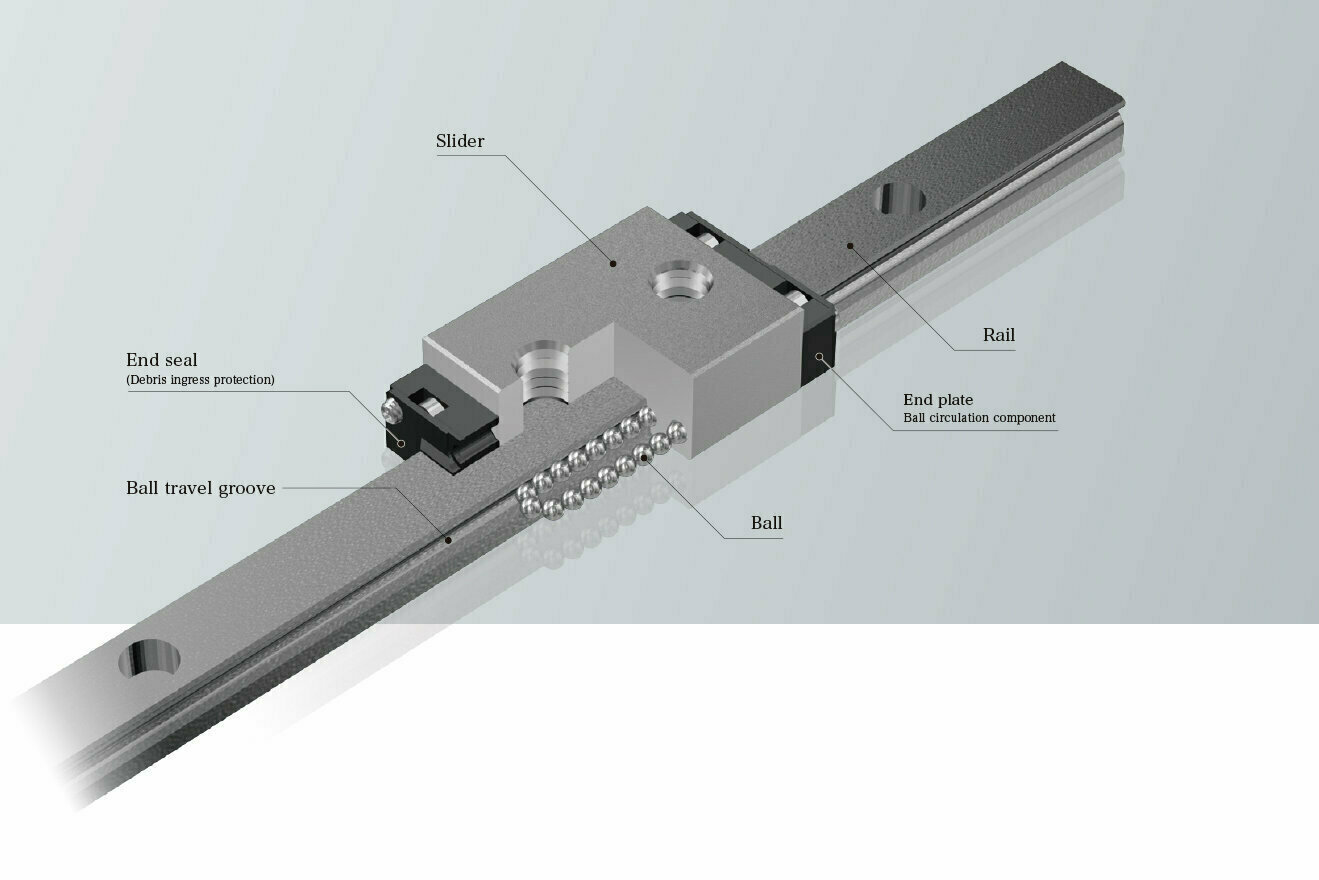

The rolling guide utilizes a ball circulation system.

This product can be secured with bolts during installation. Mounting time is considerably reduced because clearance adjustment is unnecessary.

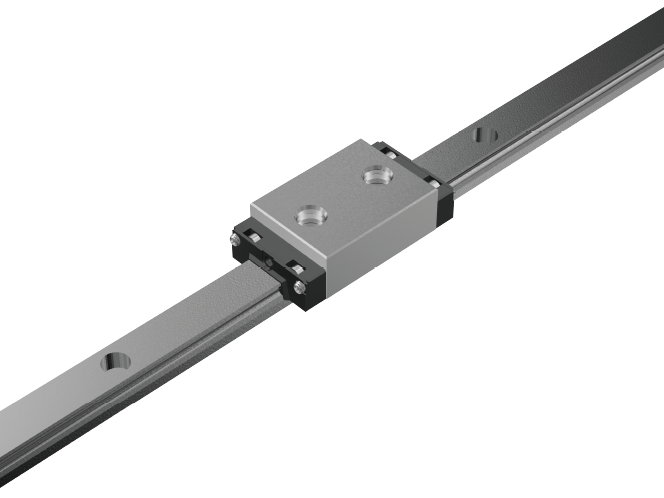

With a compact size of 20 mm (height) x 32 mm (width), each slider has a permissible load of 3430 N (radial direction). The quantity of sliders can be freely selected to suit the specifications, and rails can be manufactured at a maximum length of 2960 mm.

This product can be used in a variety of installation orientations such as horizontal, vertical, slanted, wall-mounted, and suspended.

The Utility Slide UGR is utilized in a wide variety of applications such as residential and office fixtures. The slim body can support large loads and enables compact design of machines with a high degree of design freedom.

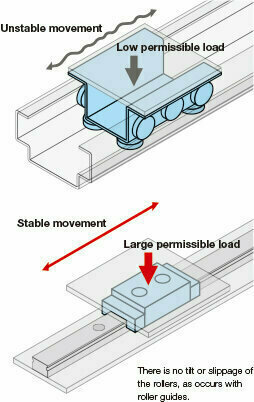

Comparison with a Roller Guide

	Permissible load	Clearance adjustment
Roller guide	Permissible load is small compared to the size of the roller guide main unit.	Clearance adjustment is difficult, making movement heavy and resulting in large gaps.
Utility Slide UGR	Large permissible load and allows for compact designs.	Clearance adjustment is unnecessary. (Adjusted: maximum radial clearance +0.05 mm)

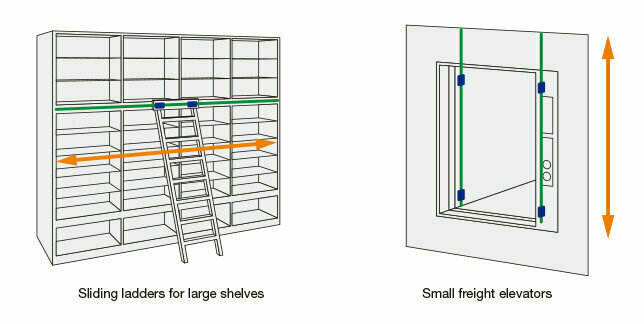

Stores

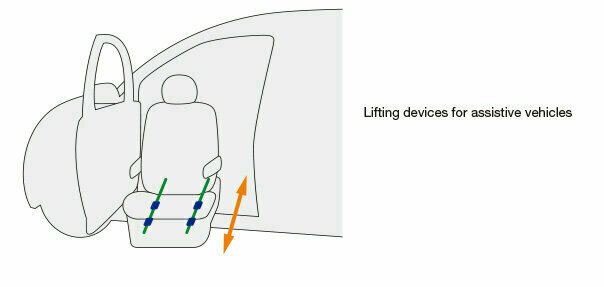

Assistive Devices

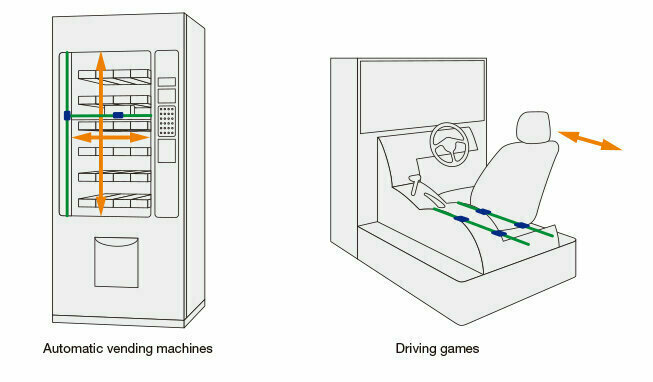

Other Facilities

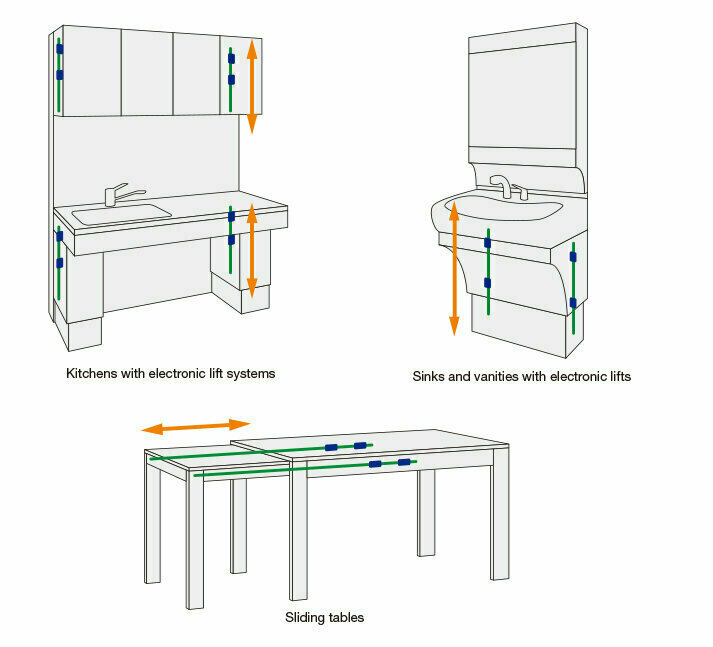

Housing

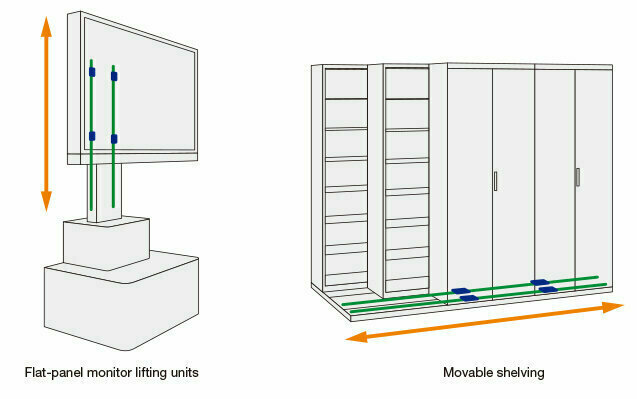

Offices
