The ES/EC Linear Actuators catalog presents a complete lineup of mechanical-type linear actuators, offering a range of motor-compatible flanges and accessories such as sensors.
This catalog features the ES/EC series stocked at THK America's HQ warehouse, available for projects requiring quick turnaround.
THK flexibly accommodate customizing requests to your meet needs such as
・Custom motor mounting brackets, etc.
Please contact with THK via Chat, local contact, distributors.
Tools
Designer

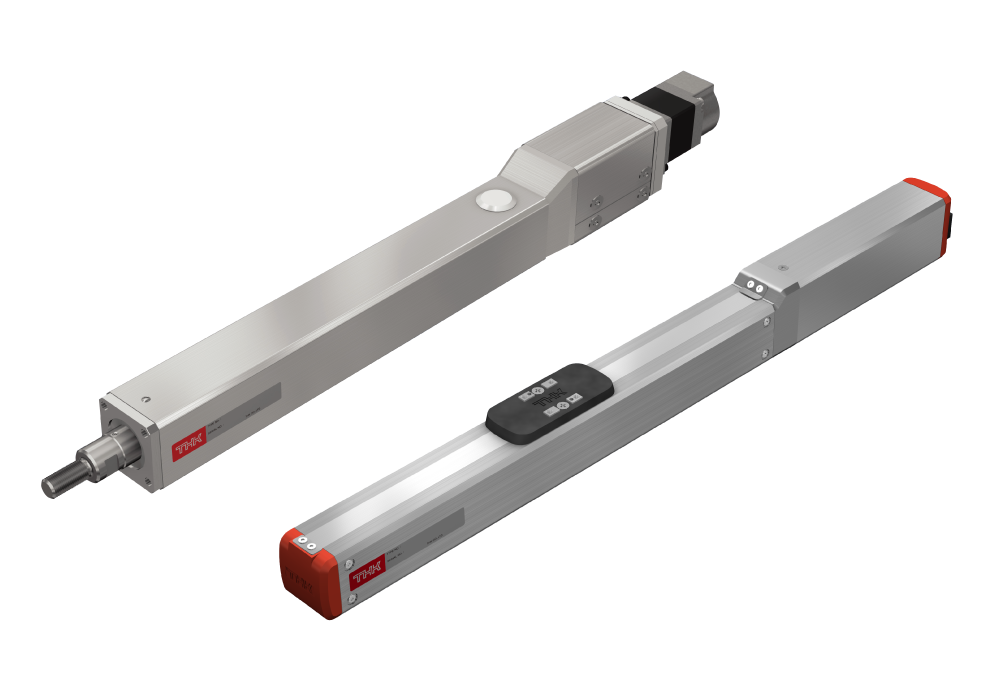

Model ESModel EC
2D/3D CAD
Model ES Download 2D&3D-CADModel EC Download 2D&3D-CAD
Life Calculator
Model ESModel EC
Features
Structure

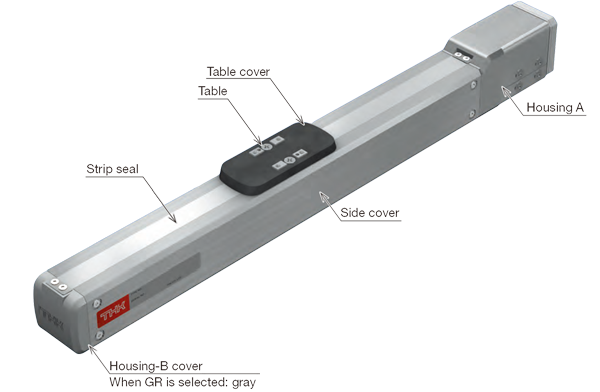

Slider Type ES
Cylinder Type EC
Compact and Reliable
By incorporating an LM Guide within its rectilinear guide, the ES provides both compactness and reliability.
Reasonably Priced
The use of LM Guides reduces the number of components required, making the ES available at a reasonable cost.
Long-Term Maintenance-Free Operation
The ES incorporates the model SRS LM Guide, equipped with Caged Ball, as well as Lubricator QZ, for optimal ball-screw lubrication. The combined effect provides for long-term maintenance-free operation.
Predictable Service Life
The service life of the LM Guide and ball screw can be calculated based on usage conditions. Contact THK for details.
