  4. Model PC/PCT High Thrust Linear Cylinder Actuator

Model PC/PCT
High Thrust Linear Cylinder Actuator

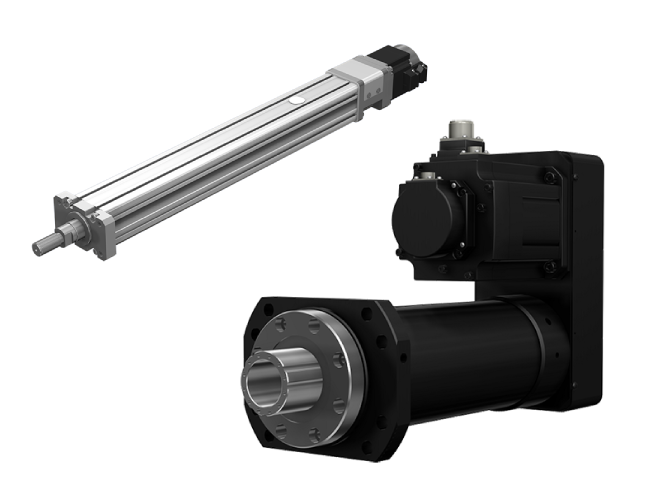

The PC series, engineered specifically for servo press mechanisms, integrates a ball screw and ball spline to achieve a compact, space‑saving design. Delivering a maximum instantaneous thrust of 250 kN and exceptional positioning repeatability, it is ideal for high‑precision pressing, press‑fitting, punching, and drawing applications. The PCT model provides a maximum thrust of 2400 N and employs aluminum extrusions to achieve a cost‑effective design

Model PC/PCT

Precautions on Use

PC/PCT Linear Actuator (Mechanical Only)

The PC/PCT Linear Actuators catalog presents a complete lineup of mechanical-type linear actuators, offering a range of motor-compatible flanges and accessories such as sensors.

PC/PCT Linear Actuator (With Motor)

PC/PCT Linear Actuators can be supplied with the motor pre‑assembled. Compatible motor options include THK motion controllers as well as motors from major Japanese manufacturers.

Customized PC/PCT

THK flexibly accommodate customizing requests to your meet needs such as
・Custom motor mounting brackets, etc.
Please contact with THK via Chat, local contact, distributors.

Tools

2D/3D CAD

Model PC Download 2D&3D-CAD
Model PCT Download 2D&3D-CAD

Features(PC)

Structure

Achieves the High Thrust Needed for Presses

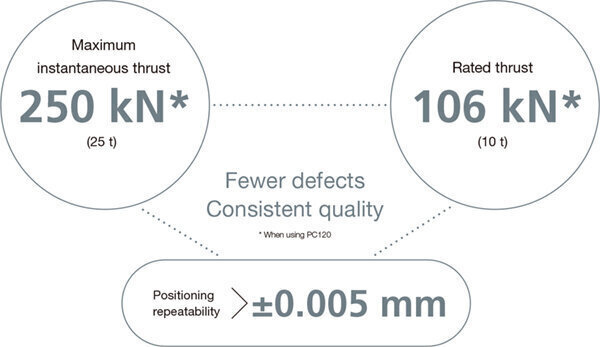

This product achieves high thrust with a maximum instantaneous thrust of 250 kN* and high-precision positioning repeatability. It is optimal for high-precision pressing, press-fitting workpieces, punching, and deep drawing. Smooth movement and high-precision positioning repeatability provided by ball spline and precision ball screw.

Unique, Integrated Structure Enables Compactness

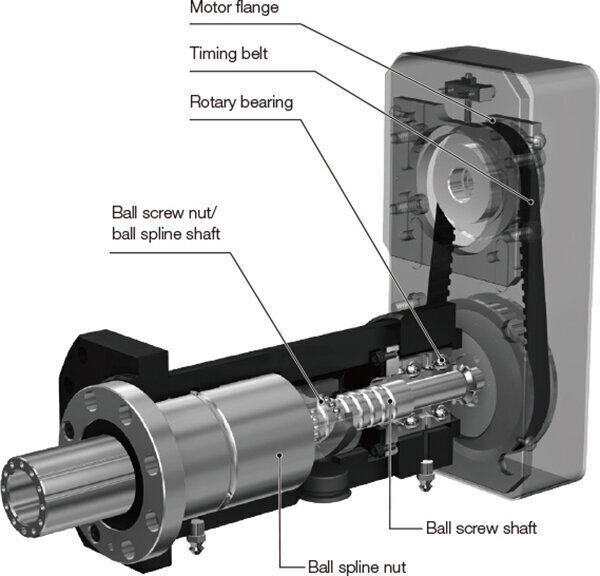

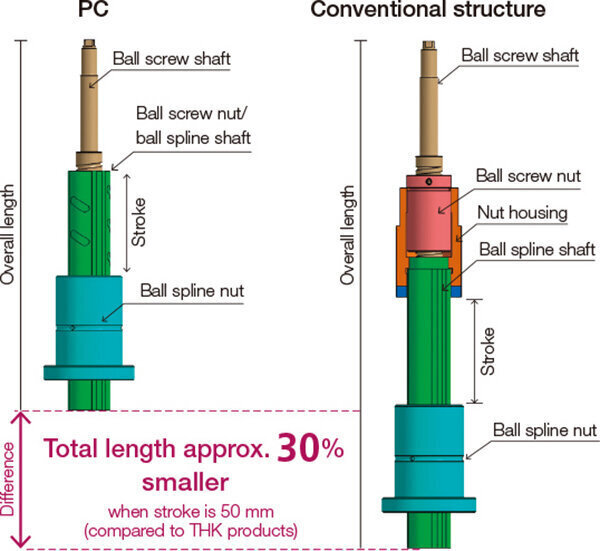

With an integrated structure combining a ball spline with a precision ball screw, the overall length is significantly more compact, and there are fewer components.

Features(PCT)

Structure

Freedom of Design

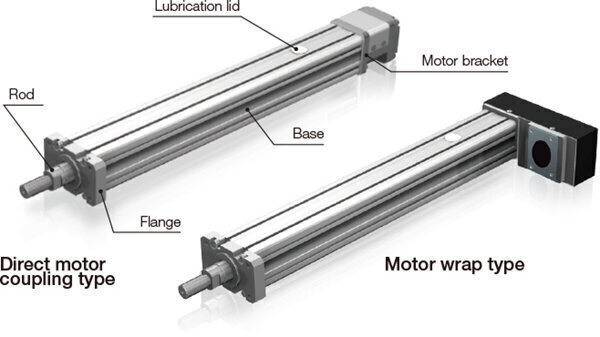

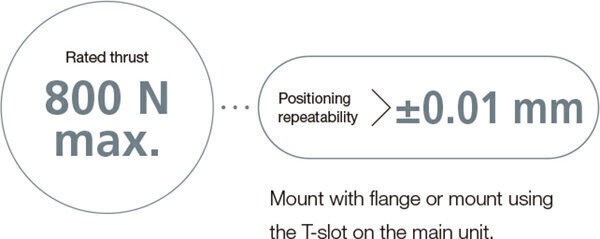

Supports a variety of mounting configurations with two different mounting methods. Enables high-precision positioning repeatability. Because it is specialized in rigidity for load-bearing in the axial direction, it can be used in small presses and caulking machines.
