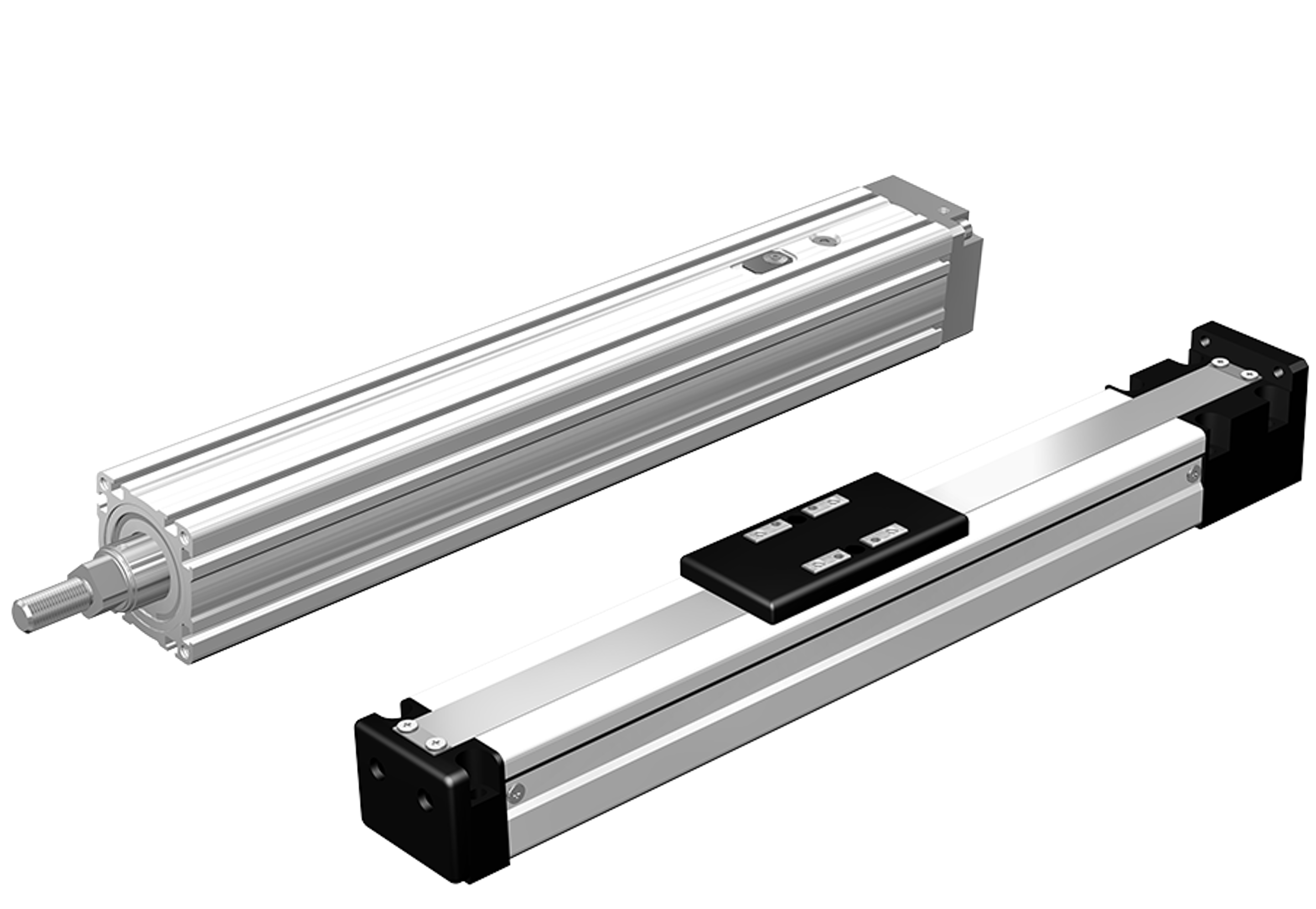

Model VLA
Economy Series Linear Actuator

The VLA Linear Actuator series consists of the slider-type VLAST (2 size variants) and the rod-type VLACT (3 size variants). By incorporating long ball retainers in the LM Guide SRS and the QZ lubrication unit in the ball screw shaft for optimal lubrication, the series achieves long-term maintenance-free operation. The lineup supports servo motors with output ranging from 30W to 100W, as well as NEMA23-size stepping motors.

Model VLA

Precautions on Use

VLA Linear Actuator (Mechanical Only)

The VLA Linear Actuator series includes the slider-type VLAST and rod-type VLACT.
It supports servo motors from 30W to 100W and NEMA23-size stepping motors.

Customized VLA

THK flexibly accommodate customizing requests to your meet needs such as
・Custom motor mounting brackets, etc.
Please contact with THK via Chat, local contact, distributors.

Tools

2D/3D CAD

Model VLA Download 2D&3D-CAD

Features

Structure

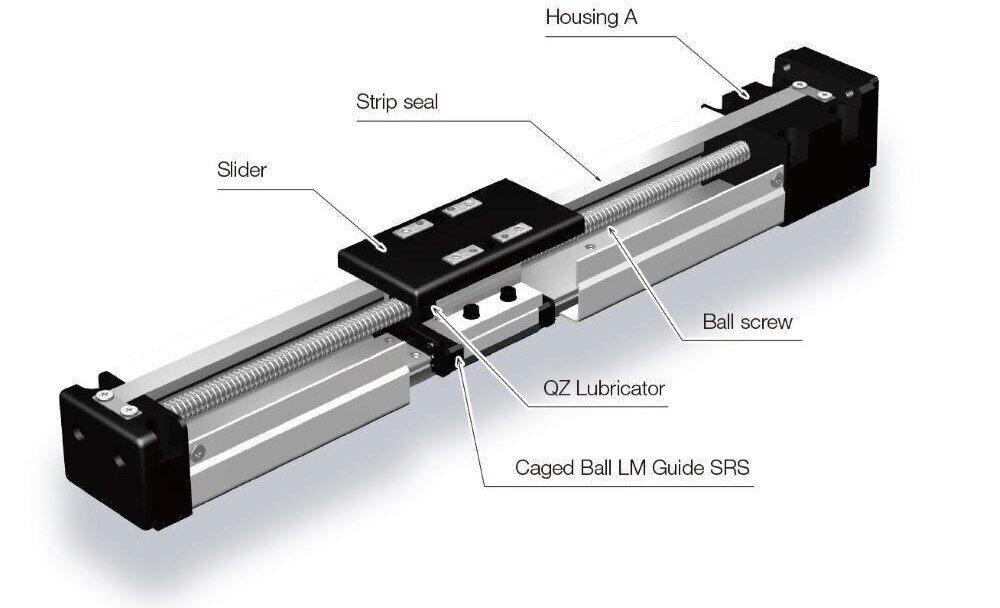

Slider Type ST

Slider Type ST

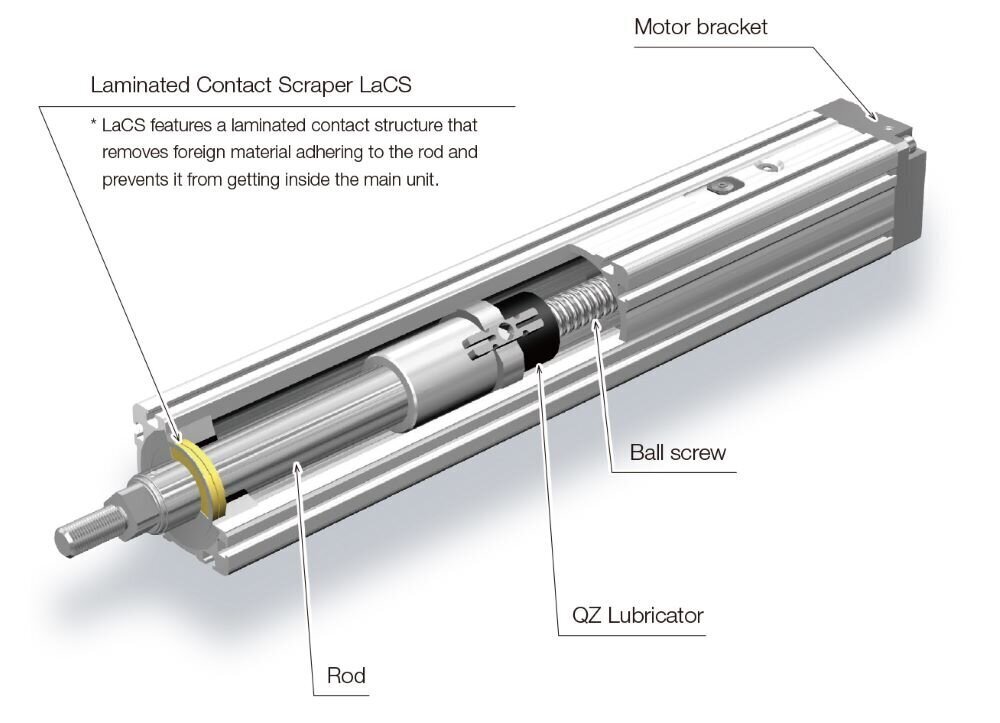

Cylinder Type CT

Cylinder Type CT

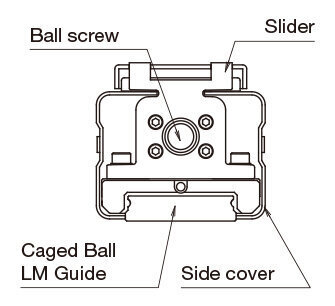

Cost-Effective, Simple Structure

With an LM Guide directly forming the base, this simple design reduces the number of components.

* VLAST only.

Lightweight and Compact

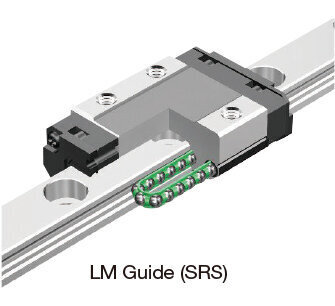

This series adopts the Caged Ball LM Guide SRS, which has a compact rail cross-section height that allows for lightweight, space-saving designs.

* VLAST only.

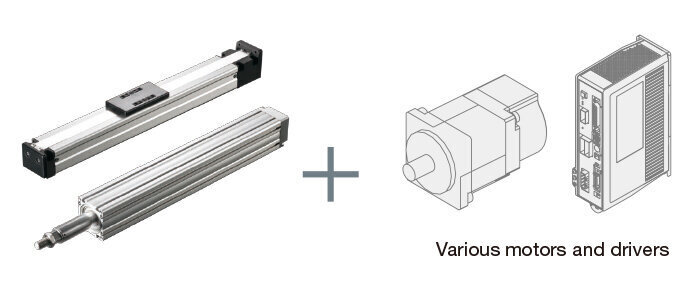

Motor Compatibility for Various Applications

THK offers a unique motion controller featuring a TLC/THC system that enables effortless setup and dependable operation.
For more information, please contact THK.

Long-Term Maintenance-free Operation

Long-term maintenance-free operation has been achieved by the adoption of the Caged Ball LM Guide SRS* and the QZ Lubricator, which supplies the optimal amount of lubricant to the ball screw.

* VLAST only.

The QZ Lubricator feeds the right amount of lubricant to the ball screw shaft raceway.
This allows an oil film to be constantly formed between the balls and the raceway, which improves the lubricity and significantly extends the maintenance interval.
