Caged Roller LM Guide

The caged roller LM Guide is a roller guide that achieves low friction, smooth motion, and long-term maintenance-free operation by using a roller cage. In addition, to ensure ultra-high rigidity, rollers with low elastic deformation and optimized diameter and length are used as the rolling elements. Furthermore, the lines of rollers are placed at a contact angle of 45° so that the same rated load is applied in all (radial, reverse-radial, and horizontal) directions.

Handling Precautions

Types

Highlight feature tags

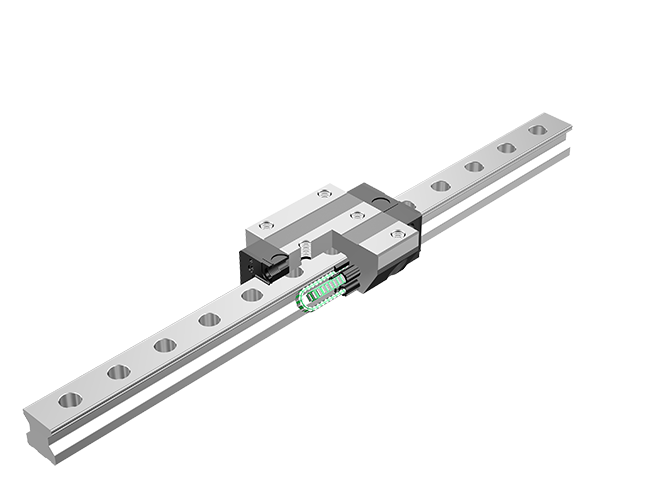

Size : 15,20,25,30,35,45,55,65,85,100

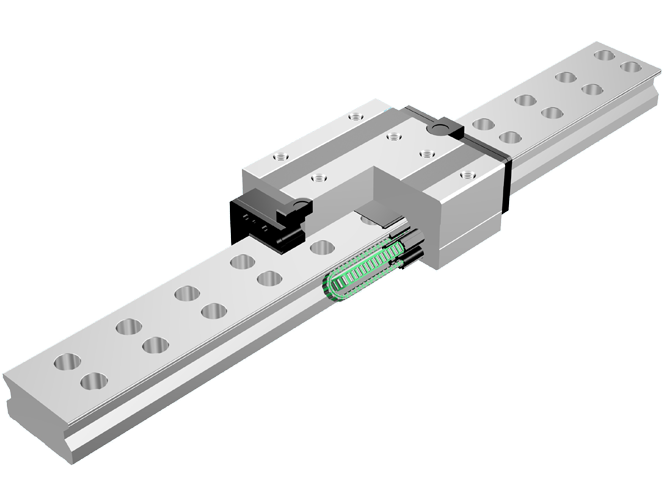

Size : 35,45,55,65

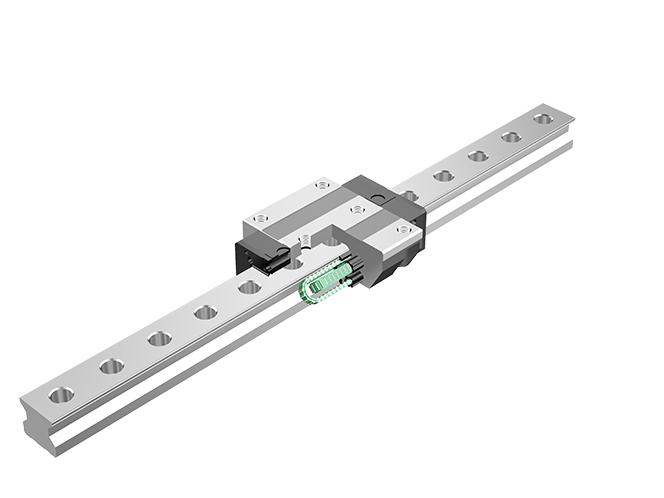

Size : 70,85,100,130,150

Features

Structure and Features of the Caged Roller LM Guide

Advantages of the Caged Roller Technology

Evenly arranged rollers circulate in a way that limits the front-to-back and side-to-side movements of the rollers, preventing the rollers from skewing and minimizing rolling resistance fluctuations. The end result is smooth and stable motion.
The absence of friction between rollers and the retention of lubrication in grease pockets enable long-term maintenance-free operation.
The absence of friction between rollers achieves low heat generation and superbly high speed.
The absence of roller-to-roller collision ensures low noise and reduced running sound.

Smooth Motion

● Rolling Resistance Data

Evenly spaced and aligned rollers circulate, minimizing rolling resistance fluctuations and achieving smooth and stable motion.

Conditions

Feeding speed10 mm/s
Applied loadno load (one block)

Long-Term Maintenance-Free Operation

● High-Speed Durability Test Data

Use of a roller cage eliminates friction between rollers, minimizes heat generation, and increases grease retention, thus achieving long-term maintenance-free operation.

Conditions
