Full-Ball LM Guide Curved LM Guide Model HCR
This is an LM Guide capable of performing larger circular motion than rotary bearings.
Sizes : 12,15,25,35,45,65
Types
Highlight feature tags
- Flange
- Bolts mounted from above
- Flange
- Bolts mounted from above
Basic load rating (kN): Basic dynamic load rating 4.7 to 141 / Basic static load rating 8.53 to 215
Sizes :
12,15,25,35,45,65
Features

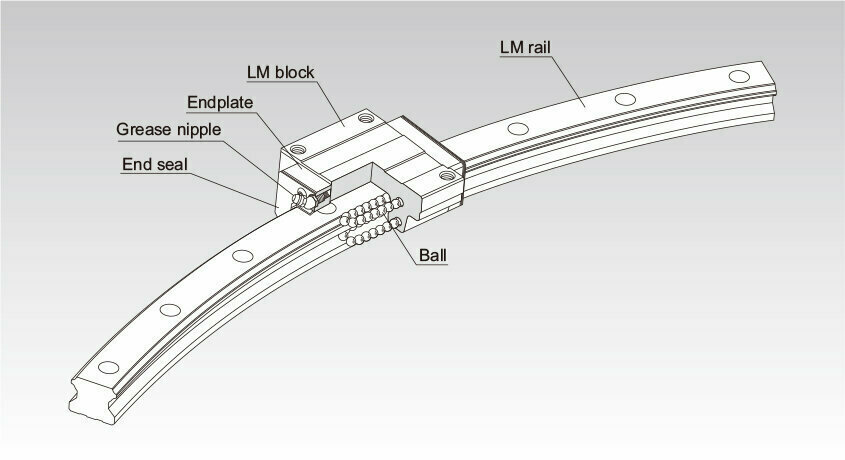

Structure and Features
Balls roll in four rows of raceways precision-ground on an LM rail and an LM block, and end plates incorporated in the LM block allow the balls to circulate. The curved guide is capable of achieving highly accurate circular motion. It is a novel product with the same basic structure as the successful LM Guide Model HSR, which can bear an equal load in
four directions.
Freedom of Design
Multiple LM blocks can individually move on the same rail. By arranging LM blocks on the load points, efficient structural design is achieved.
Shortened Assembly Time
This model allows clearance-free, highly accurate circular motion as opposed to sliding guides or cam followers. You can easily assemble this model simply by mounting the LM rail and LM blocks with bolts.
Allows Circular Motion of 5 m or Longer
It allows circular motion of 5 m or longer, which is impossible with swivel bearings. In addition, use of this model makes it easy to assemble, disassemble, and reassemble equipment that moves in a circular path.
Capable of Receiving a Load in Any Direction
This model is capable of receiving loads in all directions since it has the same basic structure as Model HSR.
Detailed information for each model number
Toggle chart
- Model HCR
