Full-Ball LM Guide Global Standard Model HSR

A global standard size LM Guide in which each row of balls is placed at a contact angle of 45° so that the load ratings applied to the LM block are uniform in the four directions (radial, reverse-radial, and lateral directions), enabling the LM Guide to be used in all orientations.

Sizes : 8,10,12,15,20,25,30,35,45,55,65,85,100,120,150

Handling Precautions

Types

Highlight feature tags

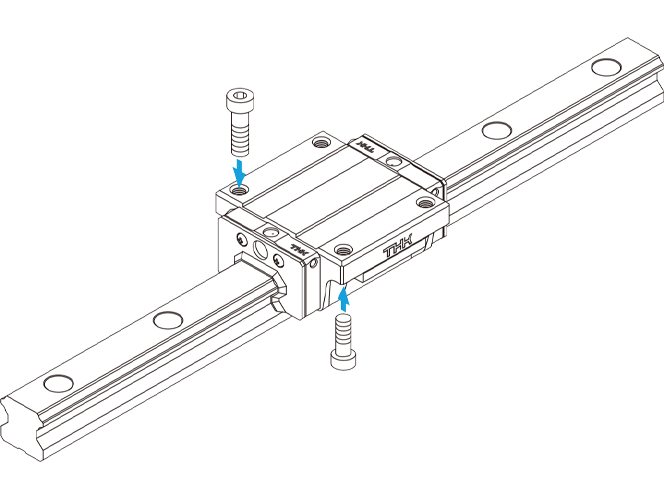

Basic load rating(kN)：Basic dynamic load rating 0.85 to 3.95 / Basic static load rating 1.24 to 5.39
Sizes : 8,10,12

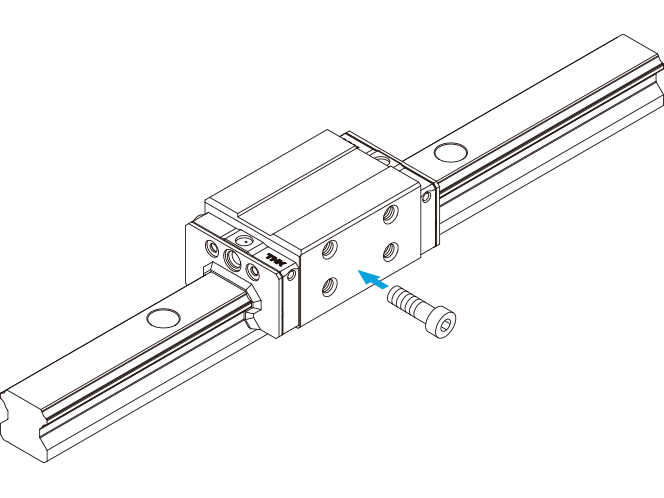

Basic load rating (kN): Basic dynamic load rating 10.9 to 195 / Basic static load rating 15.7 to 228
Sizes : 15,20,25,30,35,45,55,65

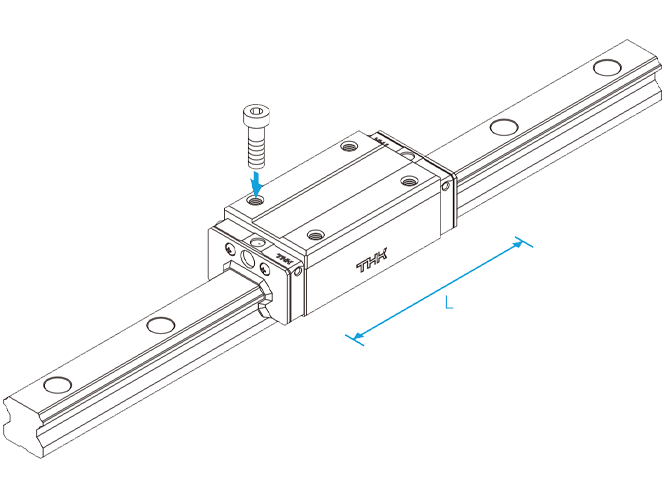

Basic load rating (kN): Basic dynamic load rating 14.2 to 249 / Basic static load rating 22.9 to 323
Sizes : 15,20,25,30,35,45,55,65

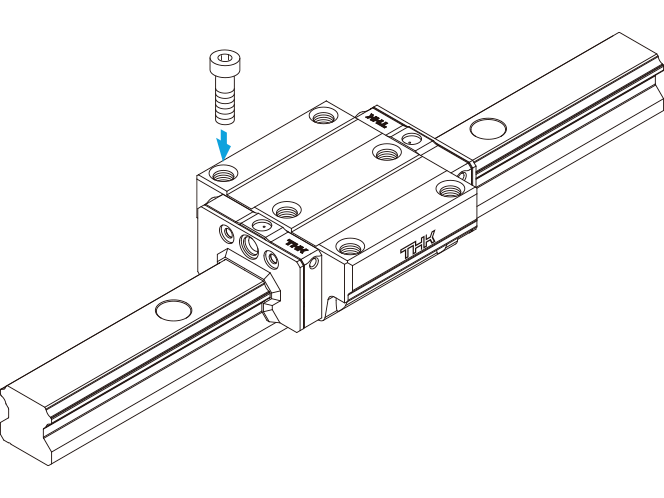

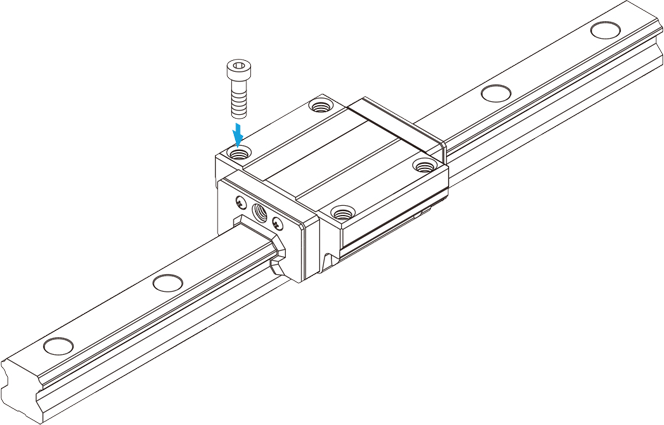

Basic load rating (kN): Basic dynamic load rating 1.08 to 304 / Basic static load rating 2.16 to 355
Sizes : 8,10,12,15,20,25,30,35,45,55,65,85

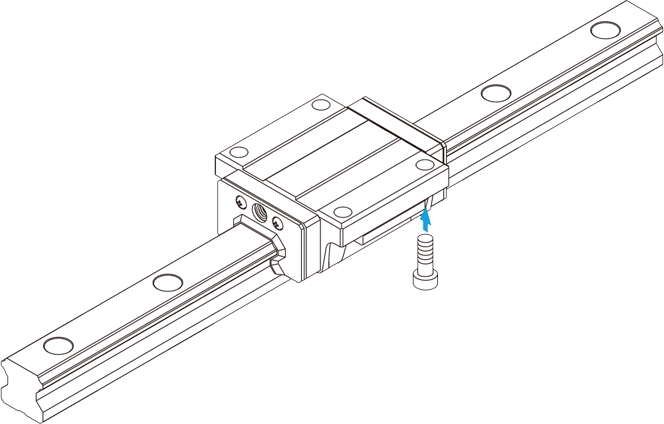

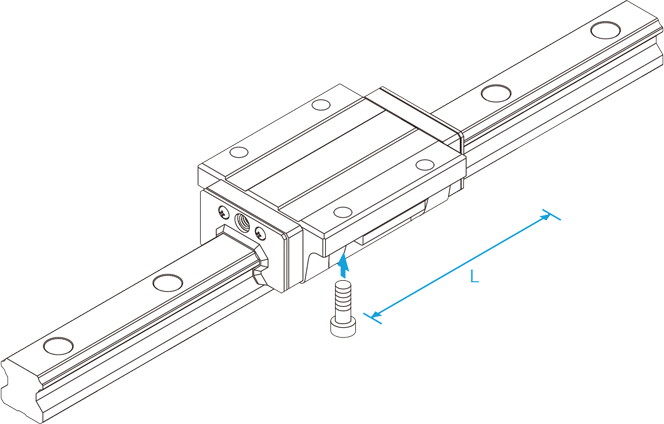

Basic load rating (kN): Basic dynamic load rating 23.9 to 367 / Basic static load rating 35.8 to 464
Sizes : 15,20,25,30,35,45,55,65,85

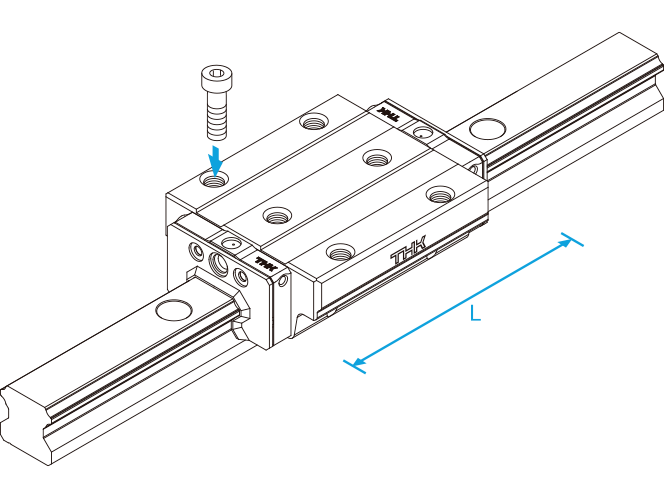

Basic load rating (kN): Basic dynamic load rating 304 / Basic static load rating 355
Size : 85

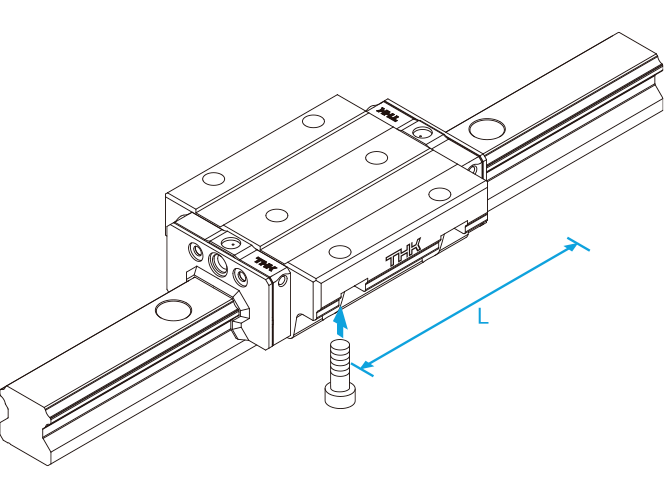

Basic load rating (kN): Basic dynamic load rating 367 / Basic static load rating 464
Size : 85

Basic load rating (kN): Basic dynamic load rating 304 / Basic static load rating 355
Size : 85

Basic load rating (kN): Basic dynamic load rating 367 / Basic static load rating 464
Size : 85

Basic load rating (kN): Basic dynamic load rating 10.9 to 195 / Basic static load rating 15.7 to 228
Sizes : 15,20,25,30,35,45,55,65

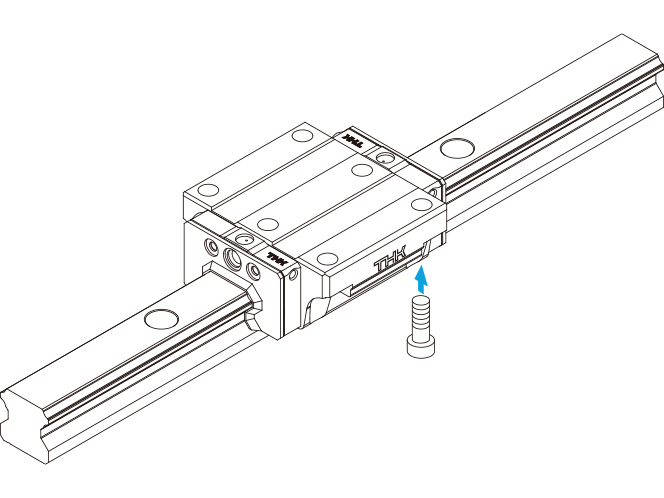

Basic load rating (kN): Basic dynamic load rating 19.8 to 304 / Basic static load rating 27.4 to 355
Sizes : 20,25,30,35,45,55,65,85

Basic load rating (kN): Basic dynamic load rating 23.9 to 367 / Basic static load rating 35.8 to 464
Sizes : 20,25,30,35,45,55,65,85

Basic load rating (kN): Basic dynamic load rating 441 to 518 / Basic static load rating 540 to 728
Sizes : 100,120,150

Features

Structure and Features

Balls roll in four rows of raceways precision-ground on an LM rail and an LM block, and end plates incorporated in the LM block allow the balls to circulate. Since retainer plates hold the balls, they will not fall out even if the LM block is removed from the LM rail (except models HSR 8X, 10X, and 12X). Each row of balls is placed at a contact angle of 45° so that the load ratings applied to the LM block are uniform in the four directions (radial, reverse-radial, and lateral directions), enabling the LM Guide to be used in all orientations. In addition, the LM block can receive a well-balanced preload, increasing the rigidity in the four directions while maintaining a constant, low friction coefficient. The low height of the LM block makes it highly rigid, achieving stable, high-precision linear motion.

Four-Way Equal Load

Each row of balls is placed at a contact angle of 45° so that the load ratings applied to the LM block are uniform in the four directions (radial, reverse-radial, and lateral directions), enabling the LM Guide to be used in all orientations.

High Rigidity

Since the balls are well balanced in four rows, a large preload can be applied and the rigidity in four directions can easily be increased.

Self-Adjustment Capability

The self-adjustment capability through front-to-front configuration of THK’s unique circular-arc grooves (DF set) enables a mounting error to be absorbed even under a preload, thus achieving highly accurate and smooth linear motion.

High Durability

Balls do not undergo differential slip, even under a preload or excessive biased load, allowing for smooth motion. Due to the product’s high wear resistance, it maintains long-term accuracy.

Stainless Steel Type also Available

A special type whose LM block, LM rail, and balls are made of stainless steel is also available.

Detailed information for each model number

Dimensional drawing/Dimensional table
