Full-Ball LM Guide Miniature Cross LM Guide Model MX
This model has two Miniature LM Guide model RSR rails integrated into an extremely low-profile orthogonal LM System.
Sizes : 5,7
Types
Basic load rating (kN): Basic dynamic load rating 0.59 to 2.04 / Basic static load rating 1.1 to 3.21
Sizes :
5,7
Features
Structure and Features

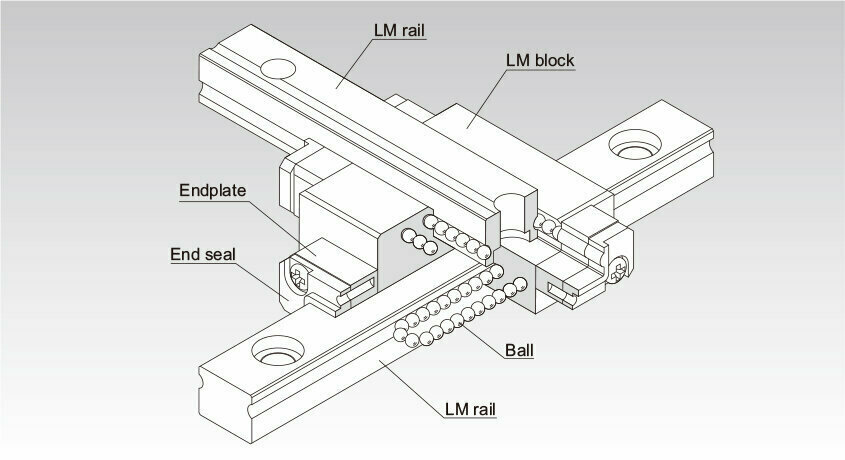

Balls roll in two rows of raceways precision-ground on an LM rail and an LM block, and end plates incorporated in the LM block allow the balls to circulate. This model has two Miniature LM Guide Model RSR rails intersecting at right angles integrated back-to-back into a single block. The Model MX alone achieves an extremely low-profile orthogonal LM System, eliminating the need for conventional saddles and enabling a more compact structure.
Four-Way Equal Load
Each row of balls is placed at a contact angle of 45° so that the load ratings applied to the LM block are uniform in the four directions (radial, reverse-radial, and lateral directions), enabling the LM Guide to be used in all orientations.
LM rail with Tapped Holes

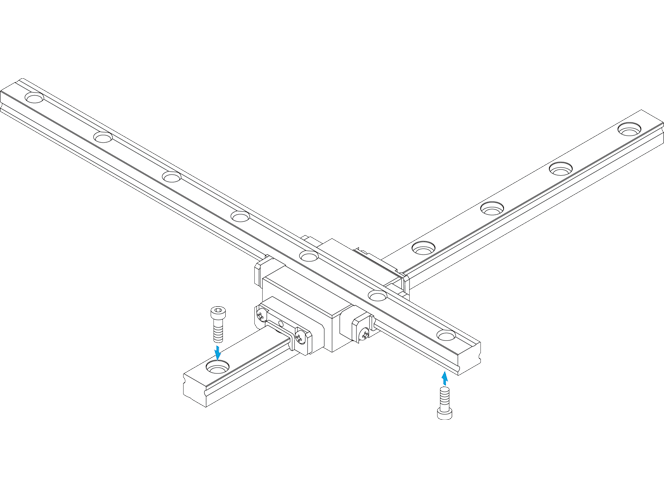

There are two types of the LM rail: one designed to be mounted from the top with bolts, and a semi-standard type whose bottom face has tapped holes, allowing the rail to be mounted from the bottom.
