Full-Ball LM Guide Super-Heavy Load (Radial) Models NRS-X / NRS for Machine Tools
These are LM Guide models for super-heavy loads. The raceways are cut into deep grooves that have a radius closer to that of the balls than in the conventional design. They also have high rigidity, vibration and shock resistance, and damping characteristics, which are required for machine tools.
Sizes : 25,30,35,45,55,65,75,85,100
Types
Highlight feature tags
- Flange
- Long block LM Guide
- Ultra long block
- Bolts mounted from above and below
- Bolts mounted from above
- Bolts mounted from below
- Bolts mounted from above
Basic load rating (kN): Basic dynamic load rating 28.4 to 376 / Basic static load rating 52.2 to 737
Sizes :
25,30,35,45,55,65,75,85,100

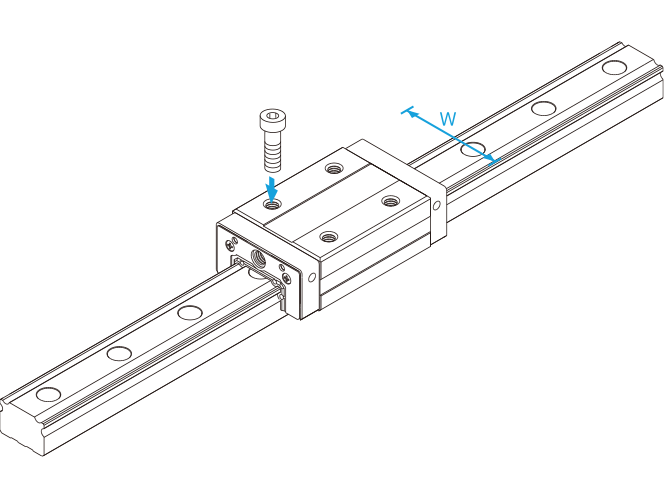

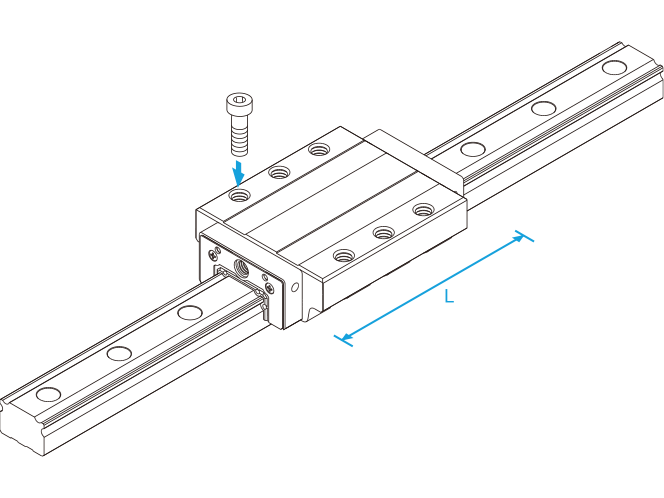

- Long block LM Guide
- Bolts mounted from above
Basic load rating (kN): Basic dynamic load rating 34.7 to 470 / Basic static load rating 69.6 to 920
Sizes :
25,30,35,45,55,65,75,85,100

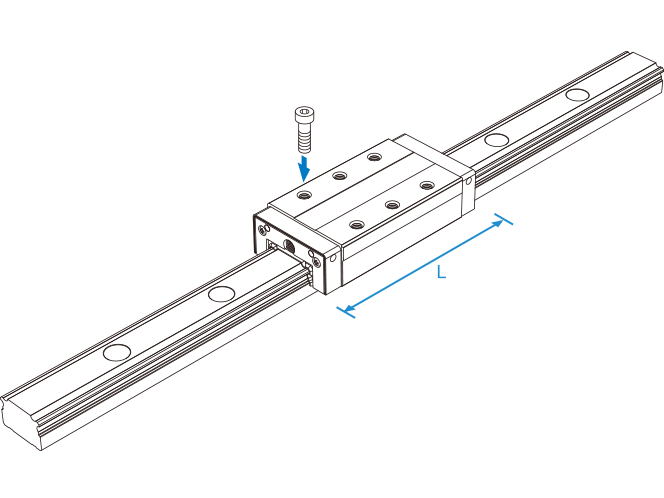

- Ultra long block
- Bolts mounted from above
Basic load rating(kN) : Basic dynamic load rating 54.4 to 324.1 / Basic static load rating 132.2 to 740.8
Size :
25,30,35,45,55,65

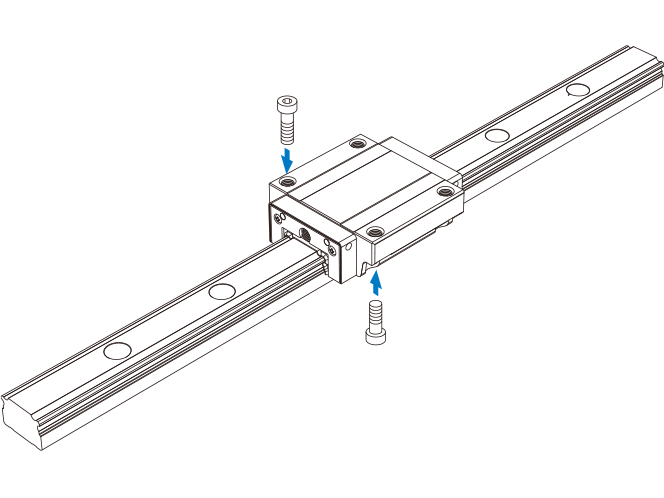

- Flange
- Bolts mounted from above and below
Basic load rating (kN): Basic dynamic load rating 28.4 to 159.8 / Basic static load rating 52.2 to 269.4
Sizes :
25,30,35,45,55,65

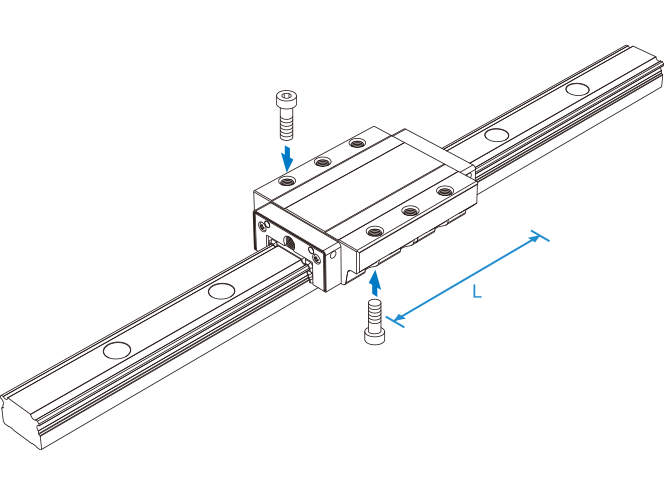

- Flange
- Long block LM Guide
- Bolts mounted from above and below
Basic load rating (kN): Basic dynamic load rating 34.7 to 206 / Basic static load rating 69.6 to 387.2
Sizes :
25,30,35,45,55,65
- Flange
- Ultra long block
- Bolts mounted from above and below
Basic load rating(kN) : Basic dynamic load rating 54.4～324.1 ／ Basic static load rating 132.2～740.8
Sizes :
25,30,35,45,55,65

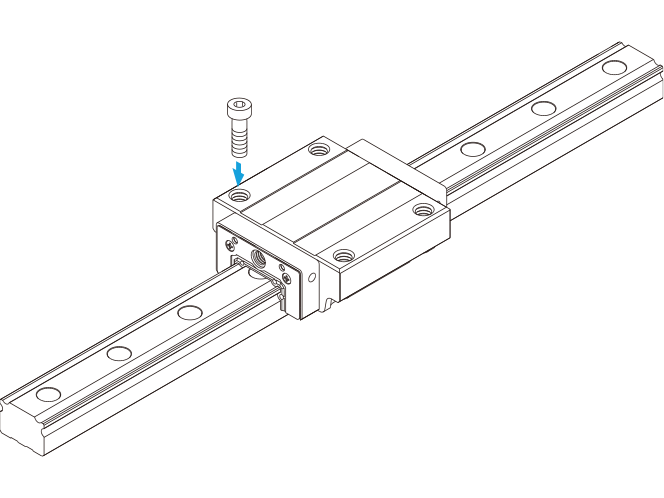

- Flange
- Bolts mounted from above
Basic load rating (kN): Basic dynamic load rating 212 to 376 / Basic static load rating 431 to 737
Sizes :
75,85,100
- Flange
- Long block LM Guide
- Bolts mounted from above
Basic load rating (kN): Basic dynamic load rating 278 to 470 / Basic static load rating 566 to 920
Sizes :
75,85,100

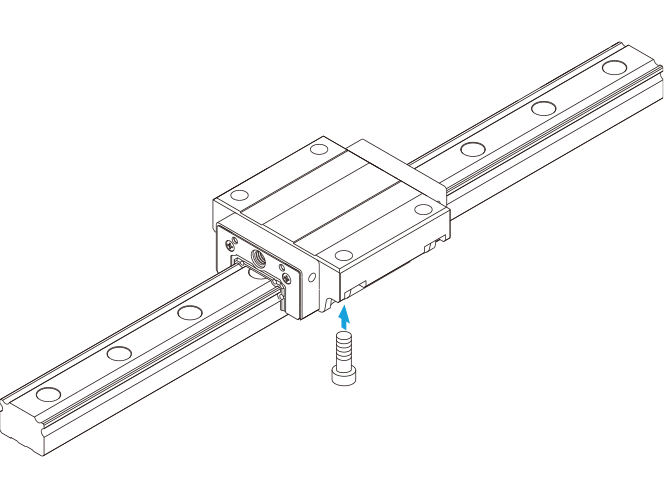

- Flange
- Bolts mounted from below
Basic load rating (kN): Basic dynamic load rating 212 to 376 / Basic static load rating 431 to 737
Sizes :
75,85,100

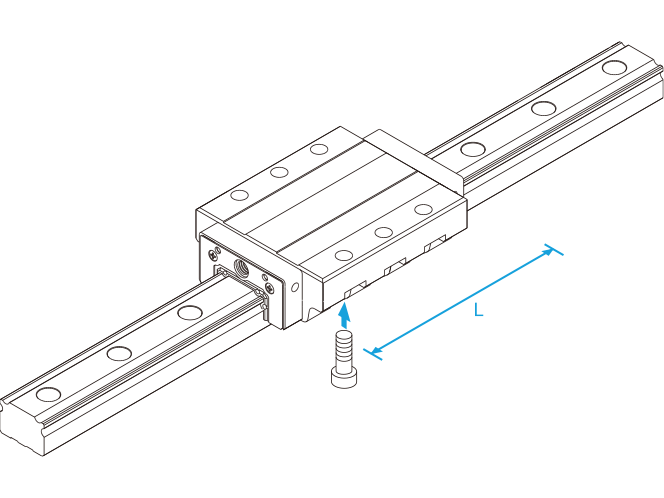

- Flange
- Long block LM Guide
- Bolts mounted from below
Basic load rating (kN): Basic dynamic load rating 278 to 470 / Basic static load rating 566 to 920
Sizes :
75,85,100
Features

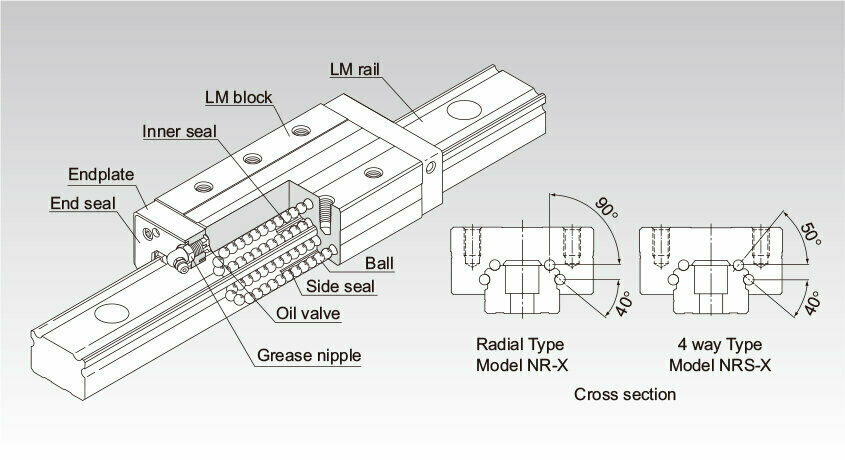

Structure and Features
Balls roll in four rows of raceways precision-ground on an LM rail and an LM block, and end plates incorporated in the LM block allow the balls to circulate. The raceways are cut into deep grooves that have a radius closer to that of the balls than in the conventional design, using special equipment and an extremely precise cutting technique. This design allows high rigidity, high vibration and impact resistance, and high damping capacity, all of which are required for machine tools, thus making these models capable of bearing super-heavy loads.
Notes: Due to the extremely high rigidity of LM Guide units of models NR-X and NRS-X, the construction does not easily absorb the effects of mounting surface misalignment and installation errors. Where such effects arise, there is a risk of reduced operating life and/or malfunction. Contact THK when considering the use of these products.
Improved Damping Capacity
When a machine tool equipped with Model NR or NRS is not performing cutting operations, the LM Guide travels normally and smoothly. When cutting a workpiece, the cutting force is applied to the LM Guide and increases the contact area between the balls and the raceway, allowing an appropriate mixture of rolling and sliding motion to be achieved. Accordingly, the friction resistance is increased and the damping capacity is improved. Since the absolute slip during the rolling and sliding motion is insignificant, it causes little wear and does not affect the service life.
Highly Practical LM Guide
The excessively large differential slip occurring in a Gothic-arch groove does not happen with these models. They smoothly travel and achieve high positioning accuracy during fast feeding. NR and NRS are extremely practical models of LM Guide that generate differential slip appropriate to the cutting load, increase rolling resistance and damping, and improve cutting performance.
High Rigidity
To increase the rigidity of the LM block and the LM rail, which may impact the overall rigidity of the LM Guide in the reverse-radial and lateral directions, THK made full use of FEM to achieve optimal design within the limited dimensional range. THK offers two identically sized models with different characteristics, namely the radial type Model NR-X and 4-way type Model NRS-X. Users can select the model that best suits their specifications.
Super-Heavy Load
Since the curvature of the raceway is matched to the ball diameter, the ball contact area under a load is increased and the LM Guide is capable of receiving a super-heavy load.
Detailed information for each model number
Dimensional drawing/Dimensional table
