LM Guide with Linear Encoder

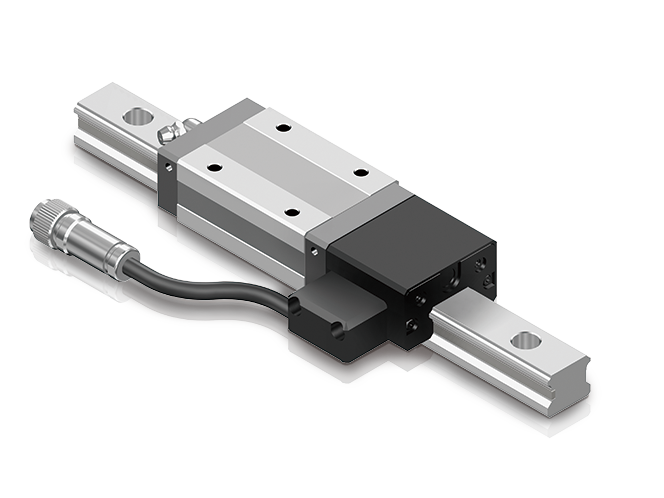

The global standard Model SHS and THK linear encoder are integrated into one compact unit.
Types
Highlight feature tags
- Long-term maintenance free
- High accuracy
- Self-adjusting capability
- 4-way equal load
- Linear encoder
- Long-term maintenance free
- High accuracy
- Self-adjusting capability
- 4-way equal load
- Linear encoder
Size : 20,25,30,35,45
Features
- Combines the global standard Model SHS and a THK linear encoder
- Makes design and assembly easier
- Enables compact machine designs
Makes design and assembly easier because no magnetic scale is required
Enables compact machine designs
Components/Structure
Shapes of Connector and Pin assignment
|
Pin assignment |
Pin signal |
|
|---|---|---|
|
Encoder |
Extension cable (output side) |
|
 |
A = +5V |
2 = SG |
|
B = PA |
5 = /PB |
|
|
C = /PA |
6 = /PA |
|
|
D = SG |
7 = +5V |
|
|
E = PB |
8 = +5V |
|
|
F = /PB |
9 = SG |
|
|
G = - |
13 = PB |
|
|
H = FG |
14 = PA |
|
Linear Encoder Specifications
|
Encoder |
Incremental magnetic encoder |
|---|---|
|
Resolution (μm) |
1/5/10 |
|
Positioning repeatability |
± Resolution or less |
|
Power supply |
5V ± 5% |
|
Output |
Incremental A-B phase differential output EIA-422 line driver |
|
Encoder head protection |
IP67 |
|
Cable length (mm) |
500 (extension cables are available) |
|
Standard compliance |
CE |
