LM Guide Models for Special Environments Corrosion-Resistant Model HSR-M2
The LM rail, LM block, and balls are made of highly corrosion-resistant stainless steel. Stainless steel in other metal components contributes to superb corrosion resistance.
Size : 15,20,25
Types
Highlight feature tags
- Flange

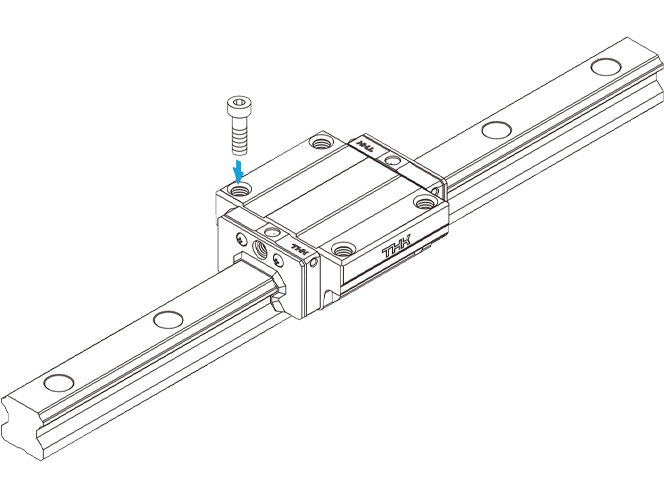

- Bolts mounted from above
- Flange
- Bolts mounted from above
Basic load rating(kN) : Basic dynamic load rating 2.11 to 5.57 / Basic static load rating 2.04 to 5.15
Size :
15,20,25
Features
Structure and Features

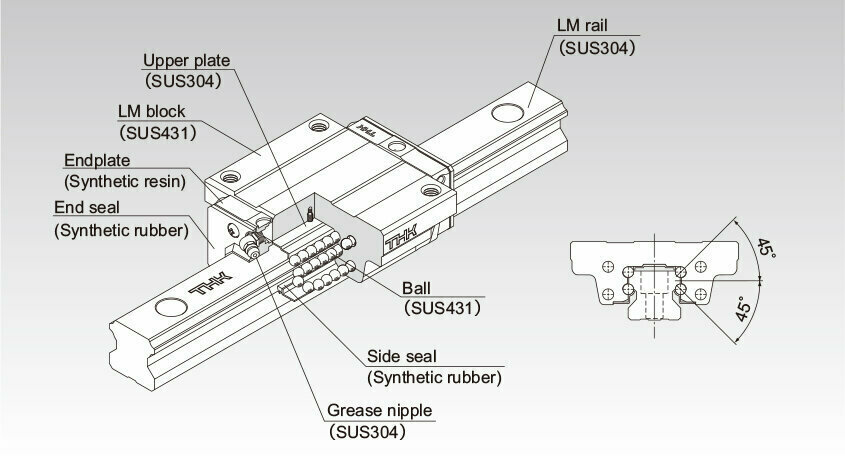

Balls roll in four rows of raceways precision-ground on an LM rail and an LM block, and end plates incorporated in the LM block allow the balls to circulate. Each row of balls is placed at a contact angle of 45° so that the load ratings applied to the LM block are uniform in the four directions (radial, reverse radial, and lateral directions), enabling the LM Guide to be used in all orientations. The LM rail, LM block, and balls are made of highly corrosion-resistant stainless steel. The use of stainless steel in other metal components further contributes to superb corrosion resistance and eliminates the need for surface treatment.
Detailed information for each model number
Toggle chart
- Model HSR-M2
