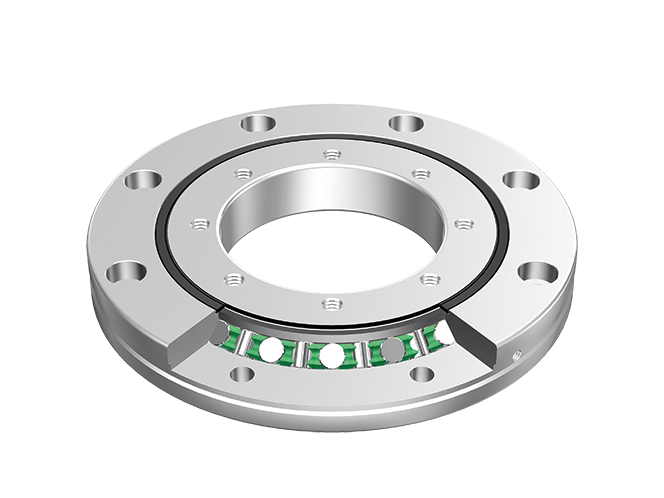

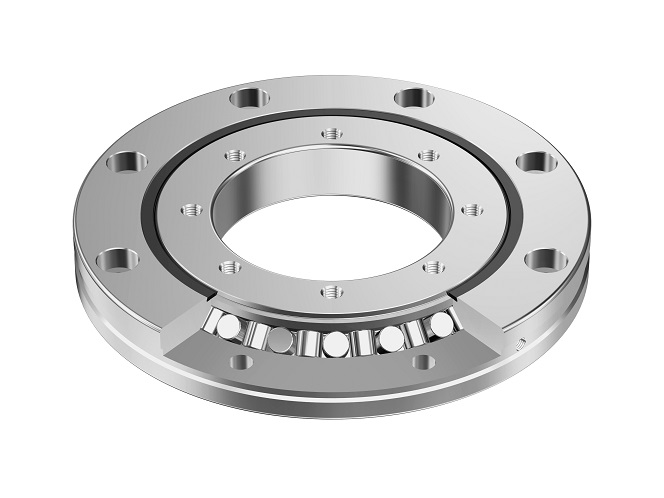

Cross-Roller Ring Standard Model RU
The integrated design of the unit’s inner and outer rings, with mounting holes on both rings,eliminates the need for a special flange or housing and enables easy installation.
Types
Highlight feature tags
- High rigidity
- Inner ring rotation
- Outer ring rotation
- Integrated inner / Outer ring type
- Large load capacity
- Rotation accuracy
- High rigidity
- Inner ring rotation
- Outer ring rotation
- Integrated inner / Outer ring type
- Large load capacity
- Rotation accuracy
Basic load rating (radial) (kN): Basic dynamic load rating 7.35 to 222 / Basic static load rating 8.35 to 473
- High rigidity
- Inner ring rotation
- Outer ring rotation
- Integrated inner / Outer ring type
- Large load capacity
- Rotation accuracy
Basic load rating (radial) (kN): Basic dynamic load rating 19.8 to 261 / Basic static load rating 25.1 to 560
Detailed information for each model number
Dimensional drawing/Dimensional table
