Method for Mounting the Ball Screw Shaft

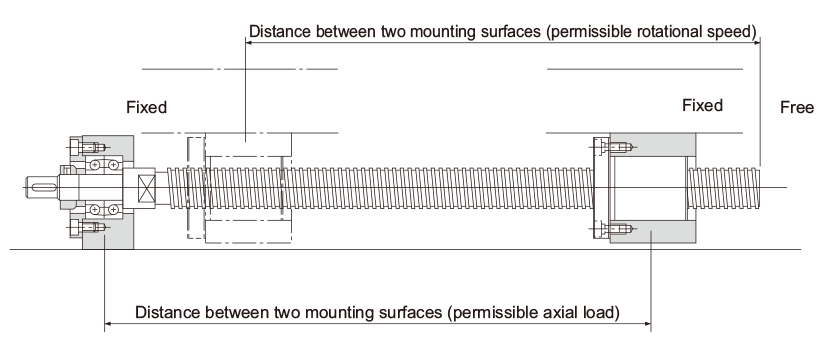

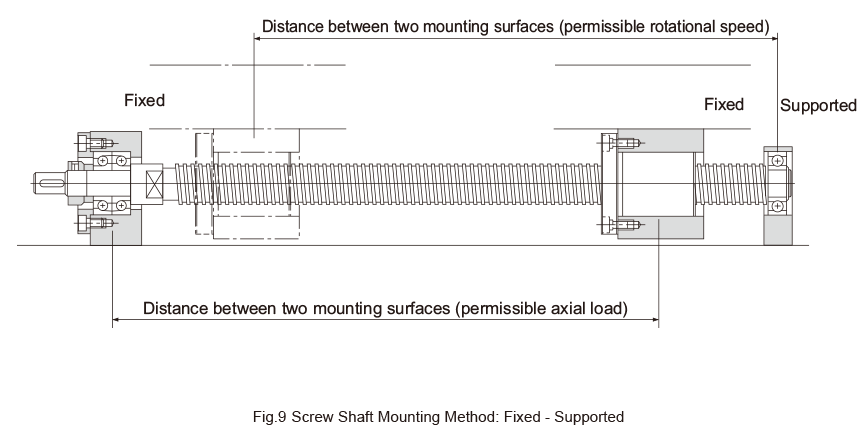

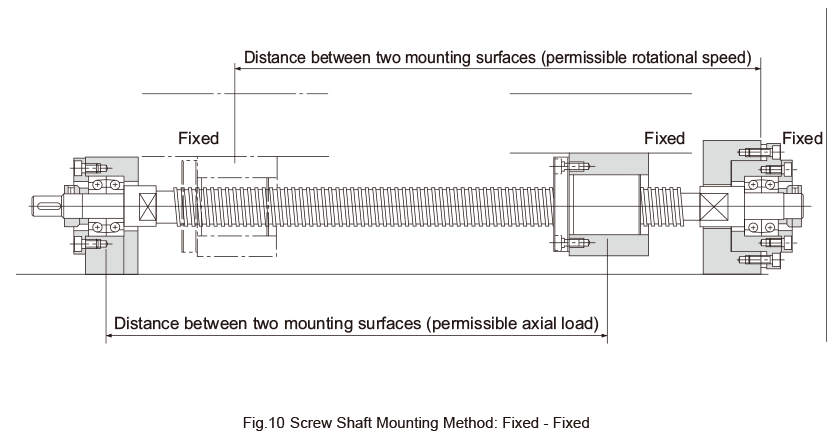

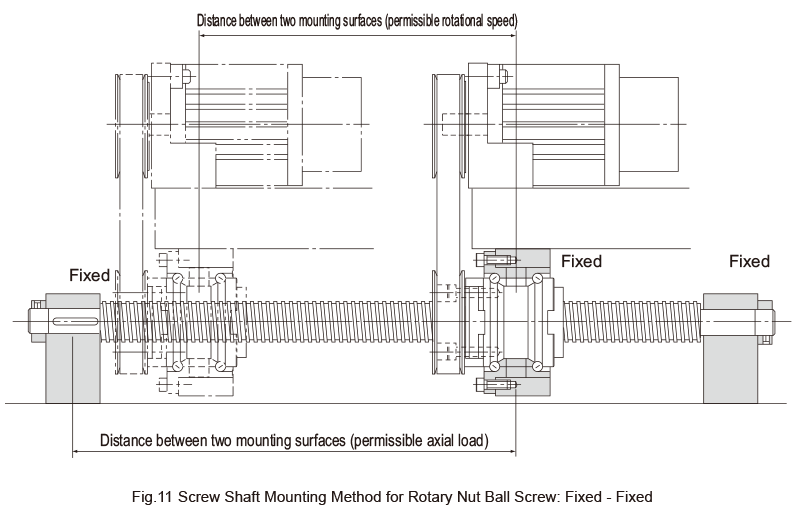

Fig.8 to Fig.11 show the representative mounting methods for the screw shaft.
The permissible axial load and the permissible rotational speed vary with mounting methods for the screw shaft. Therefore, it is necessary to select an appropriate mounting method according to the conditions.
